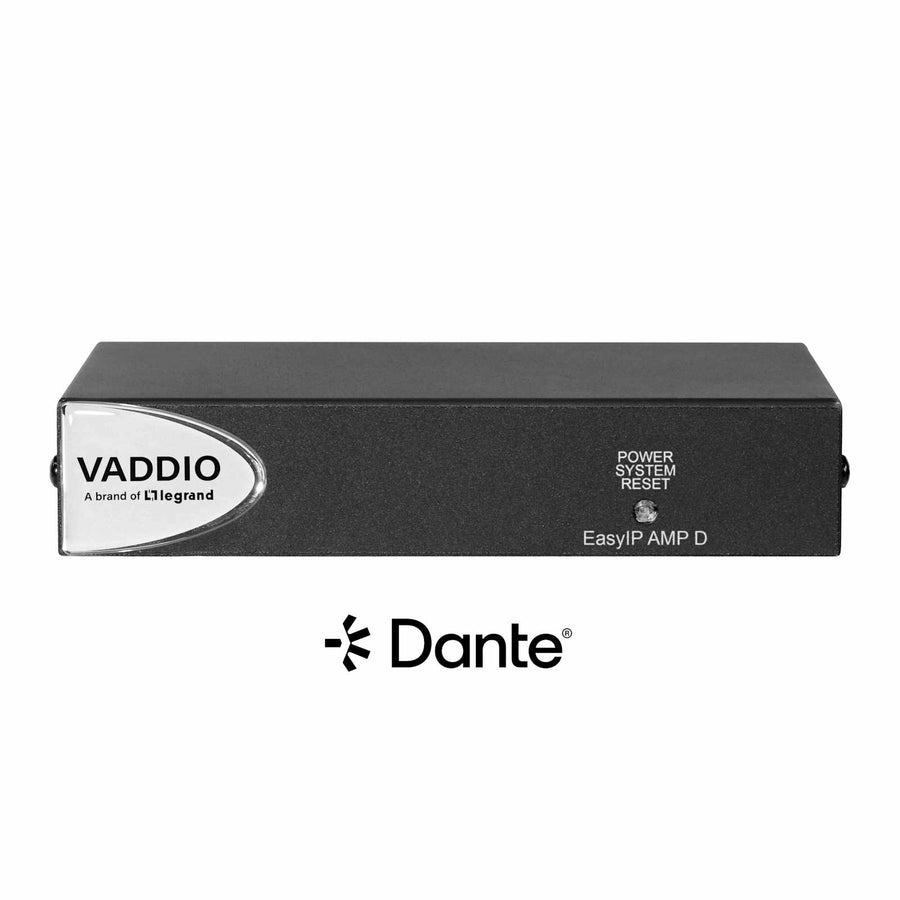

EasyIP AMP D
Half-rack PoE+ powered amplifier providing Dante networked audio to passive speakers with up to 25W of output power
The EasyIP AMP D is a half-rack PoE+ powered amplifier designed to bridge passive speakers into a digital environment. Using a single Ethernet cable, this device receives both power and a Dante audio signal via the network port, simplifying installation by removing the need for separate high-voltage lines. The amplifier provides an adaptive speaker output that delivers 25W of power when connected to an EasyIP Switch or other PoE+ source, and scales to 15W when utilizing a standard PoE source. This makes the EasyIP AMP D an efficient solution for incorporating traditional passive speakers into an existing Vaddio EasyIP or Dante audio ecosystem. Integration is managed through the Audinate Dante Controller application. This unit is part of the expanding Vaddio EasyIP AV-over-IP ecosystem, facilitating scalable audio deployment across various project sizes.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 6 in (15.2 cm) |
| Height | 1.72 in (4.4 cm) |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Product Weight | 1.45 lbs (0.7 kg) |
| Shipping Dimensions | 18" x 11" x 5" (457.2 x 279.4 x 127 mm) |
| Shipping Weight | 5 lbs (2.3 kg) |
| Width | 8.38 in (21.3 cm) |
| Audio Type | Amplifier |
All other specifications 13
| Color | Black |
| Compatible With | VaddioVaddio |
| Input Ports | Network |
| OneLINK Compatibility | No |
| Output Ports | Audio |
| Power Type | PoE |
| Quick-Connect Compatibility | No |
| Signal Type | AudioDante Audio |
| Special Features | InfoComm |
| TAA Compliant | Yes |
| UPC | 840077507985 |
| Certifications | CEFCCRoHSTAAUL Listed |
| Warranty | 3 years |
Resources
You'll need these with it
EasyIP Tx/Rx HDMI Encoder or Decoder
999-60600-000$788.40
Undermount Brackets for Vaddio 1/2 Rack Unit Devices
998-6000-005$44.10
Single 1/2 Rack Mounting Kit
998-6000-004$80.10
Dual 1/2 Rack Mounting Kit
998-6000-006$114.30
AV Bridge 2x1
999-8250-000$2,951.10
Vaddio Ceiling Speakers
999-85600-000$450.90
EasyIP Mixer
999-60320-000$2,361.60
EasyTalk Sound Bar
999-8565-000Discontinued
Questions about this part
Will the EasyIP AMP D work with my existing passive speakers?
Yes, it is designed to bring analog passive speakers into your Dante or EasyIP environments by providing networked audio and power.
How much power does the EasyIP AMP D provide to my speakers?
The amplifier provides an adaptive output of 25W if powered by a PoE+ source or 15W if powered by a standard PoE source.
What do I need to do to manage the audio settings?
You can manage the Dante networked audio through the Dante Controller application from Audinate.
What is required for a submittal or installation drawing?
You can access the EasyIP AMP D Drawing (CAD/DWG) and the Complete Manual for detailed technical documentation.
Does this unit require additional mounting hardware for a rack?
The unit includes rack mounting brackets, including one short and one long version, to facilitate installation.
