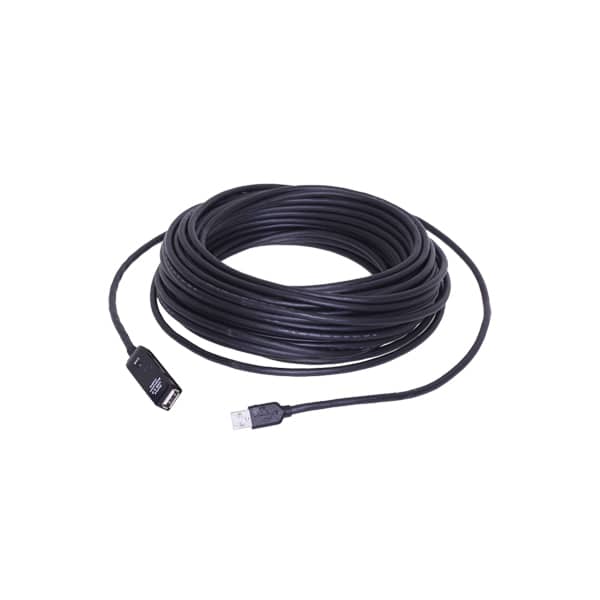

USB 2.0 Active Extension Cable
65.6 ft (20 m) shielded USB 2.0 active extension cable for extending audio, video, and control signals
The Vaddio 440-1005-020 is a 65.6 ft (20 m) shielded active extension cable designed to bridge the distance between a computer and a USB device. This Type A Female to Type A Male cable supports the full bandwidth of USB 2.0 and is also compatible with USB 1.1. It is intended for applications where the USB device and the host computer cannot be located near each other, such as extending USB audio, video, or control signals. For Vaddio products, the cable is conveniently port-powered. However, when extending non-Vaddio devices, an optional 5V, 2.0A power supply is required at the female end to maintain signal integrity over the 65.6 ft (20 m) span.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
| Distance | 65 in (165.1 cm) |
| Product Weight | 0.8 lbs (0.4 kg) |
| Shipping Dimensions | 10" x 8" x 7" (254 x 203.2 x 177.8 mm) |
| Color | Black |
| Compatible With | CiscoOtherPanasonicPolycomSonyVaddio |
| Extension Type | Active USBUSB 2.0 |
| TAA Compliant | Yes |
| UPC | 840077505851 |
| Certifications | CEFCCTAA |
| Warranty | 3 years |
Questions about this part
Will the 440-1005-020 work with my Vaddio equipment?
Yes, this cable is port-powered when used with Vaddio products, meaning it does not require an external power supply for those specific devices.
What if I am using a non-Vaddio USB device?
For non-Vaddio devices, you will need to use an optional 5V, 2.0A power supply at the female end of the cable to power the extension.
What kind of signals can this USB extension cable carry?
This active cable is designed to extend USB 2.0 audio, video, and control signals over the 65.6 ft (20 m) length.
Is the 440-1005-020 TAA compliant?
Yes, this USB 2.0 active extension cable is TAA compliant and carries CE and FCC certifications.
What is the connector type for this extension cable?
The cable features a Type A Female connector on one end and a Type A Male connector on the other.
