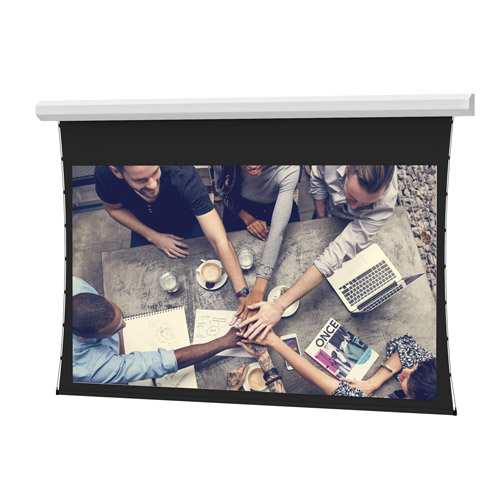

Da-Lite Tensioned Cosmopolitan Series, 92" x 164" with Parallax Stratos 1.0 - 29933EL
Large venue tensioned electric screen for 92" x 164" displays, featuring Parallax Stratos 1.0 ALR surface and 220V motor
The Da-Lite 29933EL is a Tensioned Cosmopolitan Series electric screen designed for large venue front projection applications. This 188 in (477.5 cm) diagonal screen features a 92 in (233.7 cm) height and utilizes a Parallax Stratos 1.0 surface, which provides Ambient Light Rejecting (ALR) and High Resolution capabilities. Built with a two-piece aluminum case for 188" diagonal models and larger, this screen is suitable for both ceiling and wall mounting. It is equipped with a 220V (50Hz) motor intended for export markets and includes built-in low voltage control for integrated operation. This TAA compliant product features Smooth Roll Technology to maintain a perfectly flat screen surface, and the TruGuide™ Electric Screen Tensioning System ensures optimal surface smoothness. For front projection, the standard black backing helps retain projected brightness on the surface.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 188 in (477.5 cm) |
| Screen Height | 92 in (233.7 cm) |
| Shipping Dimensions | 195" x 13" x 20" (495.3 x 33 x 50.8 cm) |
| Shipping Weight | 418 lbs (189.6 kg) |
| Size | 92" x 164" or 188" diagonal |
| Application | CeilingWall |
| Built-In Control | Low Voltage Control |
| Federal Ops Country of Origin | US |
All other specifications 10
| Motor | 220V (50Hz) for Export |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Ambient Light Rejecting (ALR)High Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Parallax Stratos 1.0 |
| TAA Compliant | Yes |
| UPC | 717068680661 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller - DL15316
DL15316$504.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Locking Switch Cover Plate
98837$102.40
Questions about this part
Is the Da-Lite 29933EL TAA compliant?
Yes, this 29933EL model is TAA compliant and features a 220V (50Hz) motor for export.
How is the screen surface tensioned for smoothness?
The screen utilizes the TruGuide™ Electric Screen Tensioning System to provide an optimal, smooth viewing surface.
What mounting options are available for this screen size?
Because this is an 188 in (477.5 cm) diagonal model, it uses a two-piece aluminum case designed for both ceiling and wall mounting.
What is the difference between the 29933EL and Myriad Reveal series?
The Cosmopolitan Series is a distinct series, whereas Myriad Reveal is a modern alternative featuring upgrades like the SightLine Cable Drop.
Which documents are available for submittals and installation?
Technical documentation includes the Tensioned Cosmopolitan Specification Sheet, Instruction Manuals, and CAD/BIM models for integration planning.
