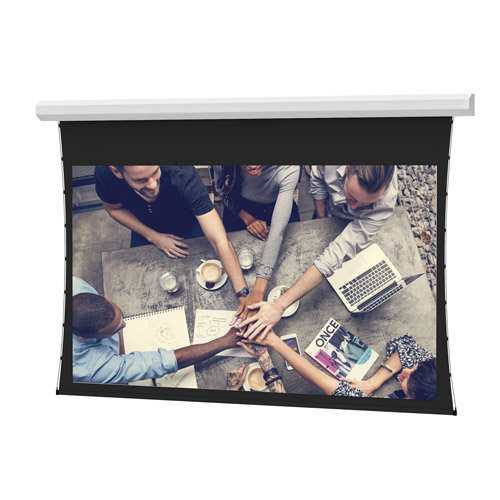

Da-Lite Tensioned Cosmopolitan Series, 92" x 164" with Da-Tex - 97981L
Rear projection Tensioned Cosmopolitan Series screen, 92" x 164" (188" diagonal) with Da-Tex surface and low voltage control
The Da-Lite 97981L is a large venue Tensioned Cosmopolitan Series electric screen designed for rear projection applications. This 188" diagonal (477.5 cm) screen features a 92" x 164" (233.7 x 416.6 mm) aspect ratio in a 16:9 HDTV format. It is engineered with a Da-Tex surface designed for standard resolution rear projection, utilizing a black backing to maintain projected brightness on the front surface. This model includes built-in low voltage control and is powered by a standard 120V (60Hz) motor. Installation can be configured for either ceiling or wall mounting; for this 188" diagonal size, the two-piece aluminum case includes mounting brackets for secure placement. The unit features Smooth Roll Technology for a perfectly flat screen and the TruGuide™ Electric Screen Tensioning System to ensure optimal viewing surface smoothness. This product is TAA compliant and manufactured in the US. Note that this specific model is scheduled for discontinuation on 10/30/26, with DL100155L and DL100107L identified as direct replacement options.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 188 in (477.5 cm) |
| Screen Height | 92 in (233.7 cm) |
| Shipping Dimensions | 195" x 13" x 20" (495.3 x 33 x 50.8 cm) |
| Shipping Weight | 418 lbs (189.6 kg) |
| Size | 92" x 164" or 188" diagonal |
| Application | CeilingWall |
| Built-In Control | Low Voltage Control |
| Federal Ops Country of Origin | US |
All other specifications 10
| Motor | Standard 120V (60Hz) |
| Projection Type | Rear Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Da-Tex |
| TAA Compliant | Yes |
| UPC | 717068355293 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Screen Controller - DL15316
DL15316$504.00
Questions about this part
What is the display compatibility for the Da-Lite 97981L?
This rear projection screen is designed for standard resolution projection on a Da-Tex surface. It is specifically engineered for large venue environments requiring a 16:9 aspect ratio.
How is the Da-Lite 97981L mounted in a ceiling or wall?
Because this is an 188" diagonal model, it utilizes a two-piece aluminum case equipped with mounting brackets specifically for wall or ceiling installation.
Does the 97981L include any wireless control options?
This SKU comes with built-in low voltage control. For wireless operation, you can add accessories such as the Da-Lite Screen Controller with RF (BLE) Remote, part number DL16522.
What is the difference between this and the newer Myriad Reveal series?
While this Cosmopolitan Series screen is highly versatile, the Myriad Reveal series offers a modern aesthetic with upgrades like the SightLine Cable Drop for improved installation and viewing experiences.
Which documentation is needed for submittals?
Installers can access the Tensioned Cosmopolitan Specification Sheet or the Tensioned Cosmopolitan Product Information Sheet for detailed technical submittals.
