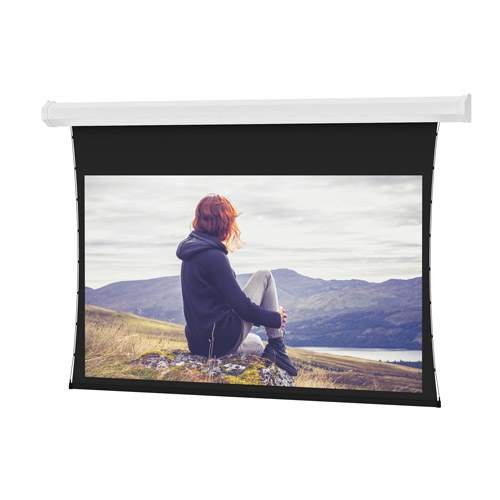

Da-Lite Tensioned Cosmopolitan Series, 78" x 139" with Da-Mat - 79027EL
Electric tensioned projection screen with Da-Mat surface, measuring 78" x 139" for front projection applications
The Da-Lite 79027EL is an electric Tensioned Cosmopolitan Series projection screen designed for large venue applications. This 159 in (403.9 cm) diagonal screen features a 78 in (198.1 cm) height and is finished with a Da-Mat surface. Optimized for front projection, the screen utilizes a standard black backing to ensure projected brightness is retained on the surface. This model is built with a single-piece steel case that includes integrated mounting holes in the end caps. It utilizes TruGuide™ Electric Screen Tensioning System technology and Smooth Roll Technology to maintain an optimal, perfectly flat viewing surface. This specific SKU is equipped with a 220V (50Hz) motor intended for export markets and includes built-in low voltage control for simplified integration. The Tensioned Cosmopolitan series is TAA compliant and can be installed in either ceiling or wall configurations to suit your venue's specific geometry.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 159 in (403.9 cm) |
| Screen Height | 78 in (198.1 cm) |
| Shipping Dimensions | 173" x 13" x 10" (439.4 x 33 x 25.4 cm) |
| Shipping Weight | 130 lbs (59 kg) |
| Size | 78" x 139" or 159" diagonal |
| Application | CeilingWall |
| Built-In Control | Low Voltage Control |
| Federal Ops Country of Origin | US |
All other specifications 10
| Motor | 220V (50Hz) for Export |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Da-Mat |
| TAA Compliant | Yes |
| UPC | 717068151468 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Floating Mounting Bracket White
77027$106.40
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller - DL15316
DL15316$504.00
Da-Lite Floating Mounting Bracket Black
77028$106.40
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Locking Switch Cover Plate
98837$102.40
Da-Lite Ceiling Trim Kit - 96384
96384$332.80
Questions about this part
Will the Da-Lite 79027EL fit my projection setup?
This screen is designed for front projection and features a 78" x 139" aspect ratio with a 16:9 HDTV screen format.
What mounting options are available for this Cosmopolitan screen?
The 79027EL can be installed using either ceiling or wall mounting applications depending on your room layout.
What additional controllers can I buy for this screen?
You can add various Da-Lite controllers, such as the DL16524 with infrared remote or the DL16521 which includes a PoE Injector.
Does this screen include a motor and control system?
Yes, this model features an electric motor (220V 50Hz for export) and includes built-in low voltage control.
What is the difference between this and the HD Progressive surface models?
This SKU features the Da-Mat surface; HD Progressive and Parallax surfaces are available on Tensioned Cosmopolitan models with a 188" Diagonal or larger.
