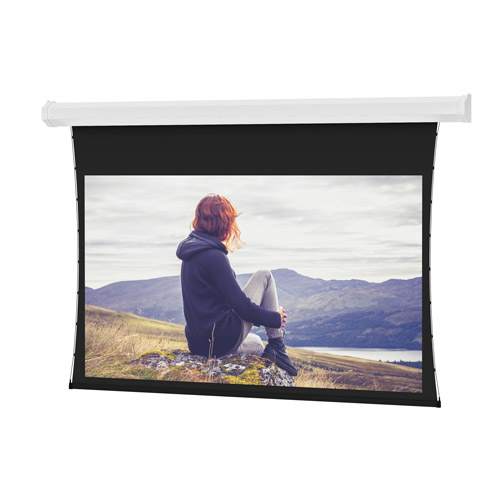

Da-Lite Tensioned Cosmopolitan Series, 72.5" x 116" with Da-Tex - 70216EL
Rear projection screen with Da-Tex surface, 72.5" x 116" dimensions, and built-in low voltage control
The Da-Lite 70216EL is a Tensioned Cosmopolitan Series electric screen designed for large venue applications. This rear projection screen features a 72.5" x 116" dimension (3708.4 x 330.2 mm) and a 137" diagonal measurement. It is equipped with a Da-Tex surface and utilizes TruGuide™ Electric Screen Tensioning System to ensure a smooth, optimal viewing surface. The unit features a single-piece steel case that includes integrated mounting holes in the end caps for installation on sizes up to 12’ wide. For control, this model includes built-in low voltage control and utilizes a 220V (50Hz) motor intended for export. The screen is TAA compliant and features a standard white powder-coated housing finish. A standard black backing is used to help retain projected brightness on the front projection surface. This model is suitable for both ceiling and wall mounting applications.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Overall Dimensions | 146" x 13" x 10" (3708.4 x 330.2 x 254 mm) |
| Screen Diagonal | 137 in (348 cm) |
| Screen Height | 72.5 in (184.2 cm) |
| Shipping Weight | 116 lbs (52.6 kg) |
| Size | 72.5" x 116" or 137" diagonal |
| Application | CeilingWall |
| Built-In Control | Low Voltage Control |
| Federal Ops Country of Origin | US |
All other specifications 8
| Motor | 220V (50Hz) for Export |
| Projection Type | Rear Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Da-Tex |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Floating Mounting Bracket White
77027$106.40
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller - DL15316
DL15316$504.00
Da-Lite Floating Mounting Bracket Black
77028$106.40
Da-Lite Ceiling Trim Kit - 96383
96383$308.00
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Locking Switch Cover Plate
98837$102.40
Questions about this part
What is the mounting requirement for the 70216EL?
The 70216EL is designed for both ceiling and wall mounting applications. For this size, it features a single-piece steel case with integrated mounting holes located in the end caps.
What control options are compatible with this screen?
This model includes built-in low voltage control. You can further enhance control using accessories like the DL16524 Da-Lite Screen Controller with Infrared Remote or the DL16523 Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector.
Does this screen support rear projection?
Yes, the 70216EL is a rear projection screen utilizing a Da-Tex surface with a standard black backing to help retain brightness.
Is this model TAA compliant?
Yes, the 70216EL is TAA compliant and is manufactured in the US.
What is the difference between the Cosmopolitan and the Contour series?
The Cosmopolitan Series features a steel case design, while the Tensioned Contour series is used for smaller screen sizes that require different surface options.
