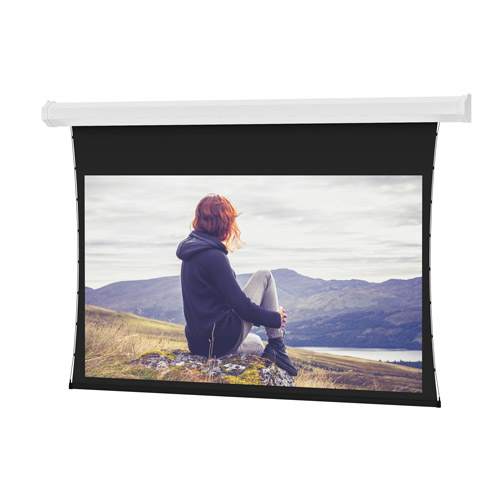

Da-Lite Tensioned Cosmopolitan Series, 69" x 92" with Da-Mat - 76016ELS
Tensioned Cosmopolitan electric screen with Da-Mat surface, 69" x 92" size, and 120" diagonal for front projection applications
The Da-Lite 76016ELS is a Tensioned Cosmopolitan Series electric screen designed for large venue environments. This 120 in (304.8 cm) diagonal screen features a 69 in (175.3 cm) height and a 92 in width, utilizing a Da-Mat surface specifically for front projection. It is built with a single-piece steel case that includes integrated mounting holes in the end caps, as this model is up to 12' wide. The screen incorporates Smooth Roll Technology to maintain a perfectly flat surface and the TruGuide™ Electric Screen Tensioning System to ensure optimal viewing smoothness. It is equipped with a silent 220V (50Hz) motor for export use and includes built-in low voltage control. For installers requiring submittals, the Tensioned Cosmopolitan Series Product Information Sheet and Installation Manuals are available in the resources section.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Overall Dimensions | 123" x 13" x 10" (3124.2 x 330.2 x 254 mm) |
| Screen Diagonal | 120 in (304.8 cm) |
| Screen Height | 69 in (175.3 cm) |
| Shipping Weight | 96 lbs (43.5 kg) |
| Size | 69" x 92" or 120" diagonal |
| Application | CeilingWall |
| Built-In Control | Low Voltage Control |
| Federal Ops Country of Origin | US |
All other specifications 8
| Motor | Silent 220V (50Hz) for Export |
| Projection Type | Front Projection |
| Screen Format | Video (4:3) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Da-Mat |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Floating Mounting Bracket White
77027$106.40
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller - DL15316
DL15316$504.00
Da-Lite Ceiling Trim Kit - 96382
96382$280.80
Da-Lite Floating Mounting Bracket Black
77028$106.40
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Locking Switch Cover Plate
98837$102.40
Questions about this part
Will this screen work with my front projection system?
Yes, the 76016ELS is specifically designed for front projection applications and features a Da-Mat surface.
Can I mount this screen on a ceiling or a wall?
This electric screen is designed for both ceiling and wall applications, utilizing a single-piece steel case with integrated mounting holes.
What motor is included with the 76016ELS?
This unit is equipped with a silent 220V (50Hz) motor intended for export use.
What accessories are compatible with this screen?
You can add a Da-Lite Screen Controller with Infrared Remote (DL16524) or a Smart Low Voltage Wall Switch (DL16622).
Is the 76016ELS TAA compliant?
Yes, this product is TAA compliant and is a US-made product.
