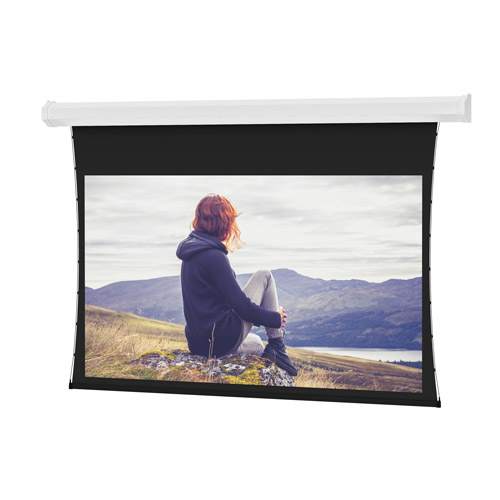

Da-Lite Tensioned Cosmopolitan Series, 69" x 110" with Da-Tex - 34500L
Rear projection electric screen, 69" x 110" size with Da-Tex surface, 130" diagonal, and built-in low voltage control
The Da-Lite 34500L is an electric Tensioned Cosmopolitan Series screen designed for rear projection applications. Measuring 69" x 110" with a 130" diagonal, this large venue solution features a Da-Tex surface that provides standard resolution performance. The unit is constructed with a single-piece steel case up to 12’ wide, which includes integrated mounting holes in the end caps to simplify the installation process. To maintain a perfectly flat viewing area, the screen utilizes the TruGuide™ Electric Screen Tensioning System and Smooth Roll Technology. This model is equipped with a standard 120V (60Hz) motor and features built-in low voltage control for integrated system management. For installers requiring TAA compliance, this product meets the necessary standards. The screen includes a standard black backing to help retain projected brightness on the front projection surface. This series is available for both ceiling and wall mounting applications.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 130 in (330.2 cm) |
| Screen Height | 69 in (175.3 cm) |
| Shipping Dimensions | 141" x 13" x 10" (358.1 x 33 x 25.4 cm) |
| Shipping Weight | 105 lbs (47.6 kg) |
| Size | 69" x 110" or 130" diagonal |
| Application | CeilingWall |
| Built-In Control | Low Voltage Control |
| Federal Ops Country of Origin | US |
All other specifications 10
| Motor | Standard 120V (60Hz) |
| Projection Type | Rear Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Da-Tex |
| TAA Compliant | Yes |
| UPC | 717068100695 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller - DL15316
DL15316$504.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Ceiling Trim Kit - 96383
96383$308.00
Da-Lite Locking Switch Cover Plate
98837$102.40
Da-Lite Floating Mounting Bracket White
77027$106.40
Da-Lite Floating Mounting Bracket Black
77028$106.40
Questions about this part
What is the intended projection type for the 34500L?
The 34500L is designed specifically for rear projection using a Da-Tex surface and includes a standard black backing to help retain brightness.
Can I mount the Da-Lite 34500L on a ceiling?
Yes, this model is rated for both ceiling and wall applications, utilizing a single-piece steel case with integrated mounting holes for installation.
What control options are available for this electric screen?
This unit features built-in low voltage control; additional accessories like the Da-Lite DL16524 infrared remote or the DL16522 RF (BLE) remote controller can be added.
Is this screen TAA compliant?
Yes, the 34500L is TAA compliant, making it suitable for projects requiring compliance with the Trade Agreements Act.
What tools are required for the installation of the 34500L?
The installation requires standard tools; refer to the Da-Lite Tensioned Cosmopolitan Series Instruction Manuals for a specific list of required tools.
