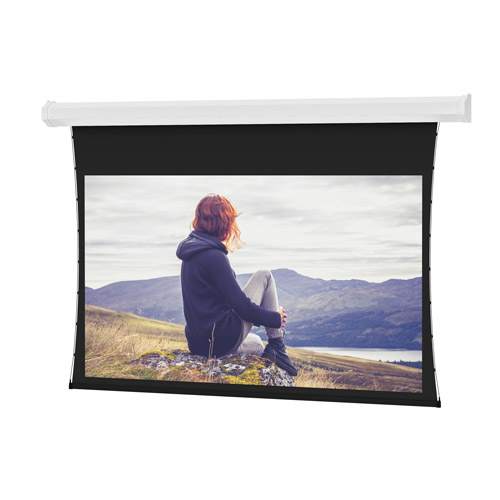

Da-Lite Tensioned Cosmopolitan Series, 65" x 116" with Da-Mat - 79026L
Electric tensioned projection screen with Da-Mat surface, 65" x 116" dimensions, and built-in low voltage control
The Da-Lite 79026L is a Tensioned Cosmopolitan Series electric projection screen designed for large venue applications. This 133" diagonal screen features a 65" x 116" dimension and utilizes a Da-Mat surface specifically optimized for front projection. The single-piece steel case construction includes integrated mounting holes in the end caps to facilitate installation for this size. It utilizes Smooth Roll Technology to maintain a perfectly flat viewing surface, paired with the TruGuide™ Electric Screen Tensioning System to ensure surface smoothness. This model includes built-in low voltage control and operates on a standard 120V (60Hz) motor. For professional installations, the screen features a standard black backing to retain projected brightness and a white powder-coated housing finish. This TAA compliant product is suitable for both ceiling and wall mount applications, providing a reliable, high-performance solution for large-scale presentation environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 133 in (337.8 cm) |
| Screen Height | 65 in (165.1 cm) |
| Shipping Dimensions | 147" x 13" x 10" (373.4 x 33 x 25.4 cm) |
| Shipping Weight | 110 lbs (49.9 kg) |
| Size | 65" x 116" or 133" diagonal |
| Application | CeilingWall |
| Built-In Control | Low Voltage Control |
| Federal Ops Country of Origin | US |
All other specifications 10
| Motor | Standard 120V (60Hz) |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Da-Mat |
| TAA Compliant | Yes |
| UPC | 717068151437 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Floating Mounting Bracket White
77027$106.40
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller - DL15316
DL15316$504.00
Da-Lite Floating Mounting Bracket Black
77028$106.40
Da-Lite Ceiling Trim Kit - 96383
96383$308.00
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Locking Switch Cover Plate
98837$102.40
Questions about this part
Will the Da-Lite 79026L work for front projection applications?
Yes, this model features a Da-Mat surface and a standard black backing designed specifically to retain brightness for front projection.
What mounting options are available for the 79026L?
This series is designed for both ceiling and wall mount applications. For this specific size, it features a single-piece steel case.
What additional controls can be added to the 79026L?
You can integrate accessories such as the Da-Lite Screen Controller with an Infrared Remote (DL16524) or a PoE Injector (DL16521).
Does this screen meet TAA compliance requirements?
Yes, the Da-Lite 79026L is TAA compliant and manufactured in the US.
What is the difference between this and larger Cosmopolitan models?
While this 133" diagonal model uses a single-piece steel case, larger models measuring 188" diagonal and over utilize a two-piece aluminum case.
