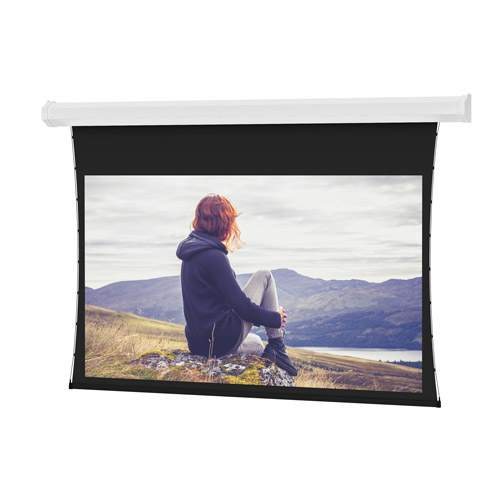

Da-Lite Tensioned Cosmopolitan Series, 58" x 104" with Da-Tex - 84998LS
58" x 104" rear projection screen featuring Da-Tex surface, silent 120V motor, and TruGuide tensioning system
The Da-Lite 84998LS is a Tensioned Cosmopolitan Series electric screen designed for high-quality rear projection in large venue environments. This 58" x 104" screen features a 119 in (302.3 cm) diagonal and is configured with a Da-Tex surface to provide standard resolution performance. It utilizes Smooth Roll Technology to ensure the screen remains perfectly flat during operation and incorporates the TruGuide™ Electric Screen Tensioning System to maintain an optimal viewing surface. This model is equipped with a silent 120V (60Hz) motor and includes built-in low voltage control for integrated management. The unit features a single-piece steel case with integrated mounting holes in the end caps, suitable for both ceiling and wall mounting applications. For projects requiring specific procurement standards, this product is TAA compliant and is manufactured in the US.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 119 in (302.3 cm) |
| Screen Height | 58 in (147.3 cm) |
| Shipping Dimensions | 134" x 13" x 10" (340.4 x 33 x 25.4 cm) |
| Shipping Weight | 100 lbs (45.4 kg) |
| Size | 58" x 104" or 119" diagonal |
| Application | CeilingWall |
| Built-In Control | Low Voltage Control |
| Federal Ops Country of Origin | US |
All other specifications 10
| Motor | Silent 120V (60Hz) |
| Projection Type | Rear Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Da-Tex |
| TAA Compliant | Yes |
| UPC | 717068173477 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Floating Mounting Bracket White
77027$106.40
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller - DL15316
DL15316$504.00
Da-Lite Floating Mounting Bracket Black
77028$106.40
Da-Lite Ceiling Trim Kit - 96383
96383$308.00
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Locking Switch Cover Plate
98837$102.40
Questions about this part
Will this screen work for rear projection applications?
Yes, the 84998LS is specifically configured with a Da-Tex surface designed for rear projection.
What mounting options are available for the 84998LS?
This series is designed for both ceiling and wall applications using the single-piece steel case and its integrated mounting holes.
What is required for the control of this electric screen?
This model includes a silent 120V motor and features built-in low voltage control for system integration.
Is this screen TAA compliant for government projects?
Yes, this SKU is TAA compliant and is made in the USA.
What accessories can be added to the Cosmopolitan Series?
You can add specialized controllers like the DL16524 with infrared remote or the DL16521 with a PoE injector.
