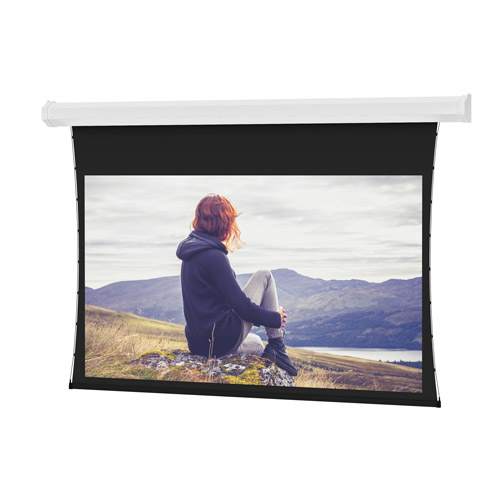

Da-Lite Tensioned Cosmopolitan Series, 57.5" x 92" with Da-Mat - 70198ELS
109" diagonal tensioned electric screen with Da-Mat surface, 57.5" x 92" format, and low voltage control
The Da-Lite 70198ELS is a Tensioned Cosmopolitan Series electric screen designed for professional front projection in large venue environments. This 109" diagonal screen features a 16:10 Wide screen format with a height of 57.5" (146.1 cm) and a width of 92". It is equipped with a Da-Mat surface, which includes a standard black backing to retain brightness on front projection surfaces. This model is designed with built-in low voltage control and a silent 220V (50Hz) motor specifically for export markets. The single-piece steel case features integrated mounting holes in the end caps, as this SKU is 92" wide. To maintain a perfectly flat viewing area, the screen utilizes Smooth Roll Technology alongside the TruGuide™ Electric Screen Tensioning System. This TAA compliant product is suitable for both ceiling and wall mounting applications.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 109 in (276.9 cm) |
| Screen Height | 57.5 in (146.1 cm) |
| Shipping Dimensions | 120" x 13" x 10" (304.8 x 33 x 25.4 cm) |
| Shipping Weight | 89 lbs (40.4 kg) |
| Size | 57.5" x 92" or 109" diagonal |
| Application | CeilingWall |
| Built-In Control | Low Voltage Control |
| Federal Ops Country of Origin | US |
All other specifications 10
| Motor | Silent 220V (50Hz) for Export |
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Da-Mat |
| TAA Compliant | Yes |
| UPC | 717068807600 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Floating Mounting Bracket White
77027$106.40
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Ceiling Trim Kit - 96382
96382$280.80
Da-Lite Floating Mounting Bracket Black
77028$106.40
Da-Lite Screen Controller - DL15316
DL15316$504.00
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Locking Switch Cover Plate
98837$102.40
Questions about this part
Will this Da-Lite 70198ELS fit my projection setup?
This screen is a 109" diagonal model with a 16:10 Wide format and is specifically designed for front projection using the Da-Mat surface.
What is the mounting requirement for the 70198ELS?
The 70198ELS can be installed in both ceiling and wall applications, utilizing the integrated mounting holes in the end caps.
What additional accessories are compatible with this screen?
You can enhance control using the Da-Lite DL16524 infrared remote or the DL16522 RF (BLE) remote, and you may require a 96382 Ceiling Trim Kit for finished installs.
Is this screen TAA compliant for government contracts?
Yes, the 70198ELS is TAA compliant and features a US country of origin.
How does the TruGuide system work?
The TruGuide™ Electric Screen Tensioning System works with Smooth Roll Technology to ensure the screen maintains a perfectly flat surface during use.
