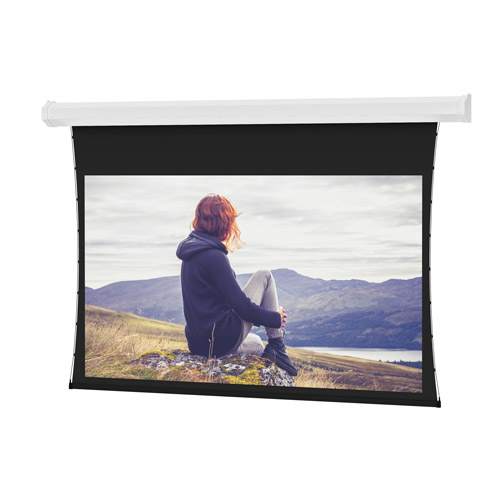

Da-Lite Tensioned Cosmopolitan Series, 54" x 96" with Da-Tex - 94208L
110" diagonal rear projection screen with Da-Tex surface, featuring low voltage control and TAA compliance
The Da-Lite 94208L is a Tensioned Cosmopolitan Series electric screen designed for high-performance rear projection in large venue environments. This 54" x 96" (110" diagonal) screen is configured with a Da-Tex surface, providing specific optical properties for rear projection applications. The unit features a single-piece steel case that includes integrated mounting holes in the end caps, facilitating efficient installation for this size. It utilizes Smooth Roll Technology to ensure the screen maintains a perfectly flat surface during use, complemented by the TruGuide™ Electric Screen Tensioning System for optimal viewing smoothness. This model is equipped with a standard 120V (60Hz) motor and comes with built-in low voltage control. For installation, the screen can be ceiling or wall mounted. The housing features a standard white powder-coated finish, and the screen includes a standard black backing to retain projected brightness on the front projection surface.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 110 in (279.4 cm) |
| Screen Height | 54 in (137.2 cm) |
| Shipping Dimensions | 126" x 13" x 10" (320 x 33 x 25.4 cm) |
| Shipping Weight | 93 lbs (42.2 kg) |
| Size | 54" x 96" or 110" diagonal |
| Application | CeilingWall |
| Built-In Control | Low Voltage Control |
| Federal Ops Country of Origin | US |
All other specifications 10
| Motor | Standard 120V (60Hz) |
| Projection Type | Rear Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Da-Tex |
| TAA Compliant | Yes |
| UPC | 717068334656 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Floating Mounting Bracket White
77027$106.40
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Ceiling Trim Kit - 96382
96382$280.80
Da-Lite Floating Mounting Bracket Black
77028$106.40
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Screen Controller - DL15316
DL15316$504.00
Questions about this part
Will the Da-Lite 94208L work for rear projection?
Yes, this model is specifically configured for rear projection using a Da-Tex surface and a standard black backing to retain projected brightness.
What mounting options are available for the 94208L?
The 94208L can be installed in either ceiling or wall mount configurations, utilizing the integrated mounting holes in the end caps.
Does the 94208L include control options?
This SKU comes with built-in low voltage control. You can also purchase compatible accessories like the DL16522 RF (BLE) remote or the DL15316 screen controller.
Is this screen TAA compliant?
Yes, the Da-Lite 94208L is TAA compliant, making it suitable for projects requiring compliance with the Trade Agreements Act.
What is the difference between the Cosmopolitan and Contour series?
While this Cosmopolitan model uses a single-piece steel case, the Tensioned Contour series is intended for smaller sizes that feature different surface options like HD Progressive or Parallax.
