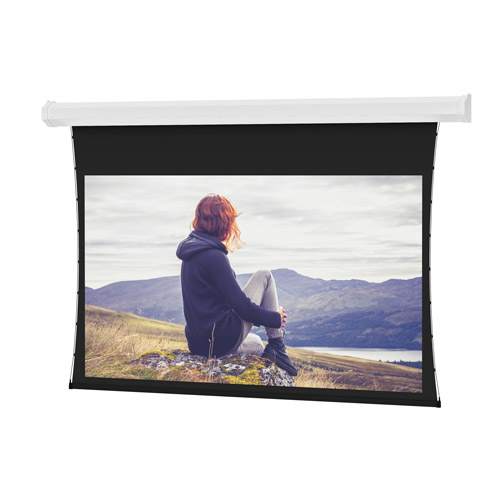

Da-Lite Tensioned Cosmopolitan Series, 54" x 96" with Da-Mat - 94200L
Tensioned electric screen for ceiling or wall mounting, 54" x 96" (110" diagonal) with Da-Mat surface
The Da-Lite 94200L is a Tensioned Cosmopolitan Series electric screen designed for high-quality front projection in large venue environments. This 110" diagonal (54" x 96") model features a Da-Mat surface, which is a standard resolution material designed to maintain high brightness through the use of black backing. The screen utilizes Smooth Roll Technology to ensure the surface remains perfectly flat during deployment and TruGuide™ Electric Screen Tensioning System for optimal smoothness. This specific SKU includes built-in low voltage control and operates on a standard 120V (60Hz) motor. The housing is a single-piece steel case that includes integrated mounting holes in the end caps, facilitating efficient installation for both ceiling and wall applications. This product is TAA compliant and is manufactured in the US.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 110 in (279.4 cm) |
| Screen Height | 54 in (137.2 cm) |
| Shipping Dimensions | 126" x 13" x 10" (320 x 33 x 25.4 cm) |
| Shipping Weight | 93 lbs (42.2 kg) |
| Size | 54" x 96" or 110" diagonal |
| Application | CeilingWall |
| Built-In Control | Low Voltage Control |
| Federal Ops Country of Origin | US |
All other specifications 10
| Motor | Standard 120V (60Hz) |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Da-Mat |
| TAA Compliant | Yes |
| UPC | 717068334311 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Floating Mounting Bracket White
77027$106.40
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Ceiling Trim Kit - 96382
96382$280.80
Da-Lite Floating Mounting Bracket Black
77028$106.40
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Screen Controller - DL15316
DL15316$504.00
Questions about this part
Will this screen fit my projector setup?
The 94200L is a front projection screen. It features the Da-Mat surface which includes black backing to retain projected brightness.
What mounting options are available for the 94200L?
This model can be installed using either ceiling or wall mount applications. It features a single-piece steel case with integrated mounting holes in the end caps.
Does this screen include the necessary controls?
This SKU comes with built-in low voltage control. For additional options, Da-Lite offers accessories like the DL16522 RF (BLE) Remote or the DL16524 Infrared Remote.
What is the difference between this and larger Cosmopolitan screens?
For diagonals of 188" and larger, the Tensioned Cosmopolitan Series uses a two-piece aluminum case with mounting brackets, whereas this 110" model uses a single-piece steel case.
What documentation is available for submittals?
You can access the Tensioned Cosmopolitan Specification Sheet or CAD and BIM models via the resources tab for technical planning and submittals.
