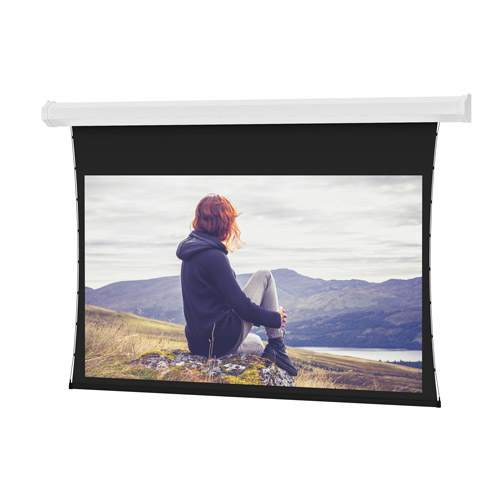

Da-Lite Tensioned Cosmopolitan Series, 50" x 67" with Da-Mat - 76014L
84 inch diagonal electric tensioned screen with Da-Mat surface for ceiling or wall mounting
The Da-Lite 76014L is a Tensioned Cosmopolitan Series electric screen designed for professional front projection applications. This 84 inch diagonal screen features a 50" x 67" aspect ratio optimized for video formats. It utilizes a Da-Mat surface to provide high-quality standard resolution imagery. The unit is built with a single-piece steel case that includes integrated mounting holes in the end caps for efficient installation on sizes up to 12’ wide. This specific model includes built-in low voltage control and utilizes a standard 120V (60Hz) motor to drive the screen movement. To ensure a perfectly flat viewing surface, the screen incorporates the TruGuide™ Electric Screen Tensioning System alongside Smooth Roll Technology. The housing comes in a standard white powder-coated finish, while a standard black backing is used to retain projected brightness. This TAA compliant solution is suitable for large venue environments and can be mounted on either a ceiling or a wall.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Overall Dimensions | 92" x 13" x 10" (2336.8 x 330.2 x 254 mm) |
| Screen Diagonal | 84 in (213.4 cm) |
| Screen Height | 50 in (127 cm) |
| Shipping Weight | 72 lbs (32.7 kg) |
| Size | 50" x 67" or 84" diagonal |
| Application | CeilingWall |
| Built-In Control | Low Voltage Control |
| Federal Ops Country of Origin | US |
All other specifications 8
| Motor | Standard 120V (60Hz) |
| Projection Type | Front Projection |
| Screen Format | Video (4:3) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Da-Mat |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Floating Mounting Bracket White
77027$106.40
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller - DL15316
DL15316$504.00
Da-Lite Ceiling Trim Kit - 96382
96382$280.80
Da-Lite Floating Mounting Bracket Black
77028$106.40
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Locking Switch Cover Plate
98837$102.40
Questions about this part
What mounting options are available for the Da-Lite 76014L?
This model is designed for both ceiling and wall applications. The steel case includes integrated mounting holes in the end caps for installation on sizes up to 12 feet wide.
Will this screen fit my specific video projection setup?
The 76014L is configured for front projection with a 4:3 video format. It features a Da-Mat surface designed to maintain brightness using a standard black backing.
What accessories are compatible with this Cosmopolitan screen?
You can add the Da-Lite Screen Controller with Infrared Remote (DL16524) or the Da-Lite Ceiling Trim Kit (96382) to customize your installation.
Does this screen include a tensioning system?
Yes, it uses the TruGuide™ Electric Screen Tensioning System and Smooth Roll Technology to ensure the surface remains perfectly flat during use.
Is this screen TAA compliant for government contracts?
Yes, the Da-Lite 76014L is TAA compliant and is manufactured in the US.
