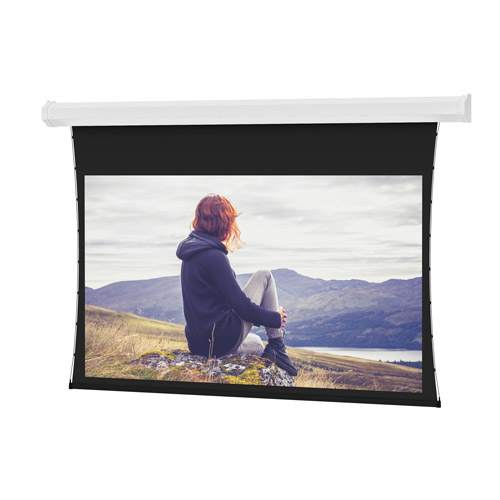

Da-Lite Tensioned Cosmopolitan Series, 45" x 80" with Da-Tex - 84995L
Rear projection tensioned screen with Da-Tex surface, 45" x 80" size, and 120V electric motor
The Da-Lite 84995L is a Tensioned Cosmopolitan Series electric screen designed for rear projection applications in large venue settings. This 45" x 80" (92" diagonal) screen features the Da-Tex surface, which is optimized for standard resolution projection. It is a TAA compliant product manufactured in the US. The unit utilizes Smooth Roll Technology to maintain a perfectly flat viewing surface, supported by the TruGuide™ Electric Screen Tensioning System to ensure optimal smoothness. This model includes a standard 120V (60Hz) motor and comes equipped with built-in low voltage control for integrated management. The housing features a standard white powder-coated finish and a single-piece steel case design. For installers requiring specific control options, the series supports accessories such as the Da-Lite Screen Controller with PoE Injector (DL16521) or the Smart Low Voltage Wall Switch (DL16622). This screen is designed for both ceiling and wall mount installation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 92 in (233.7 cm) |
| Screen Height | 45 in (114.3 cm) |
| Shipping Dimensions | 108" x 13" x 10" (274.3 x 33 x 25.4 cm) |
| Shipping Weight | 84 lbs (38.1 kg) |
| Size | 45" x 80" or 92" diagonal |
| Application | CeilingWall |
| Built-In Control | Low Voltage Control |
| Federal Ops Country of Origin | US |
All other specifications 10
| Motor | Standard 120V (60Hz) |
| Projection Type | Rear Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Da-Tex |
| TAA Compliant | Yes |
| UPC | 717068189232 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Floating Mounting Bracket White
77027$106.40
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller - DL15316
DL15316$504.00
Da-Lite Ceiling Trim Kit - 96382
96382$280.80
Da-Lite Floating Mounting Bracket Black
77028$106.40
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Locking Switch Cover Plate
98837$102.40
Questions about this part
Will the Da-Lite 84995L work with my rear projection setup?
Yes, this 84995L model is specifically designed for rear projection using a Da-Tex surface for standard resolution applications.
What mounting options are available for the 84995L?
The Cosmopolitan Series is designed for both ceiling and wall mount applications, utilizing a single-piece steel case for sizes up to 12' wide.
What control accessories can be added to the 84995L?
You can add a Da-Lite Screen Controller with PoE Injector (SKU DL16521) or a Da-Lite Screen Controller with RF (BLE) Remote (SKU DL16522).
Is the Da-Lite 84995L TAA compliant for government contracts?
Yes, this SKU is TAA compliant and is manufactured in the US.
Does this screen include a motor and integrated controls?
The 84995L includes a standard 120V (60Hz) motor and features built-in low voltage control for easier integration.
