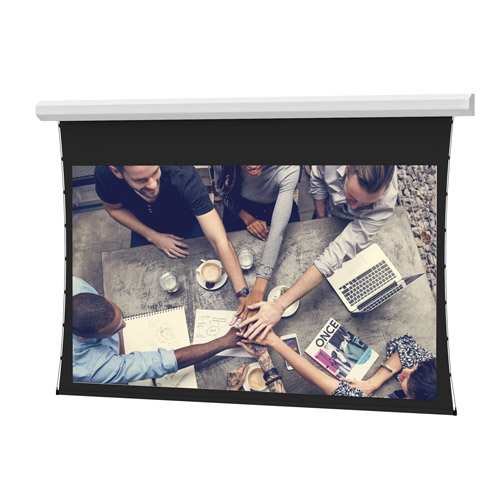

Da-Lite Tensioned Cosmopolitan Series, 120" x 192" with Da-Mat - 70272L
Large venue electric tensioned screen with Da-Mat surface, 120" x 192" dimensions, and 226" diagonal
The Da-Lite 70272L is a large venue, electric tensioned screen measuring 120" x 192" with a 226" diagonal. This Cosmopolitan Series model features the Da-Mat surface, specifically designed for front projection applications. It utilizes a standard 120V (60Hz) motor and is configured with a wide 16:10 screen format to accommodate various large-scale viewing requirements. For installation, this screen can be mounted using either a ceiling or wall application. The unit features a single-piece steel case with integrated mounting holes in the end caps, which is standard for sizes up to 12' wide. To maintain a perfectly flat viewing area, the screen employs Smooth Roll Technology alongside the TruGuide™ Electric Screen Tensioning System. This TAA compliant product is manufactured in the US and is intended for professional large venue environments. Please note that this specific model is scheduled for discontinuation on 10/30/26, with DL100194L or DL100146L serving as direct replacement options.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 226 in (574 cm) |
| Screen Height | 120 in (304.8 cm) |
| Shipping Dimensions | 226" x 13" x 20" (574 x 33 x 50.8 cm) |
| Shipping Weight | 496 lbs (225 kg) |
| Size | 120" x 192" or 226" diagonal |
| Application | CeilingWall |
| Built-In Control | Low Voltage Control |
| Federal Ops Country of Origin | US |
All other specifications 10
| Motor | Standard 120V (60Hz) |
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Da-Mat |
| TAA Compliant | Yes |
| UPC | 717068814363 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller - DL15316
DL15316$504.00
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Locking Switch Cover Plate
98837$102.40
Questions about this part
Is the Da-Lite 70272L compatible with front projection?
Yes, the 70272L features a Da-Mat surface designed specifically for front projection applications.
What are the mounting requirements for the 70272L screen?
This Cosmopolitan Series screen is designed for both ceiling and wall applications and utilizes a single-piece steel case with integrated mounting holes.
What control options are available for this screen?
The 70272L includes built-in low voltage control and operates on a standard 120V (60Hz) motor.
Does this screen include a tensioning system?
Yes, it utilizes the TruGuide™ Electric Screen Tensioning System to maintain an optimal, smooth viewing surface.
What is the replacement for the 70272L after its discontinuation?
The manufacturer lists DL100194L or DL100146L as the direct replacement options for this model.
