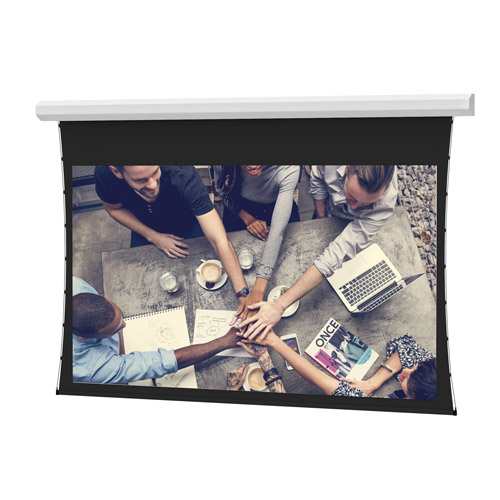

Da-Lite Tensioned Cosmopolitan Series, 120" x 160" with Da-Mat - 82430EL
Electric tensioned projection screen, 120" x 160" (200" diagonal), featuring Da-Mat surface and low voltage control
The Da-Lite 82430EL is a large venue, electric tensioned projection screen measuring 120" x 160" (304.8 x 482.6 mm) with a 200" diagonal. This Cosmopolitan Series model is designed for front projection and features a Da-Mat surface for standard resolution applications. It is configured with a 220V (50Hz) motor for export and includes built-in low voltage control. The unit utilizes the TruGuide™ Electric Screen Tensioning System to ensure a smooth, flat viewing surface, complemented by Smooth Roll Technology. For installation, this screen can be ceiling or wall mounted. The housing features a standard white powder-coated finish and includes a standard black backing to help retain projected brightness. This TAA compliant product is part of the Tensioned Cosmopolitan Series, though the manufacturer notes this series is scheduled for discontinuation on 10/30/26, suggesting the Myriad Reveal series as a modern alternative.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 200 in (508 cm) |
| Screen Height | 120 in (304.8 cm) |
| Shipping Dimensions | 194" x 13" x 20" (492.8 x 33 x 50.8 cm) |
| Shipping Weight | 416 lbs (188.7 kg) |
| Size | 120" x 160" or 200" diagonal |
| Application | CeilingWall |
| Built-In Control | Low Voltage Control |
| Federal Ops Country of Origin | US |
All other specifications 10
| Motor | 220V (50Hz) for Export |
| Projection Type | Front Projection |
| Screen Format | Video (4:3) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Da-Mat |
| TAA Compliant | Yes |
| UPC | 717068053342 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller - DL15316
DL15316$504.00
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Locking Switch Cover Plate
98837$102.40
Questions about this part
Will this screen fit my 4:3 video projector setup?
Yes, the 82430EL is specifically designed for a 4:3 screen format, making it suitable for many video projection applications.
What mounting options are available for the 82430EL?
This screen can be installed in either ceiling or wall mount configurations depending on your site requirements.
What additional controls can I buy for this screen?
You can enhance control using the Da-Lite Screen Controller with RF (BLE) Remote (DL16522) or the Da-Lite Smart Low Voltage Wall Switch (DL16622).
Does this screen include a motor for operation?
Yes, this SKU is equipped with a 220V (50Hz) motor intended for export markets.
Where can I find the installation and submittal documentation?
You can access the Tensioned Cosmopolitan Instructions and the product specification sheet via the technical documents section.
