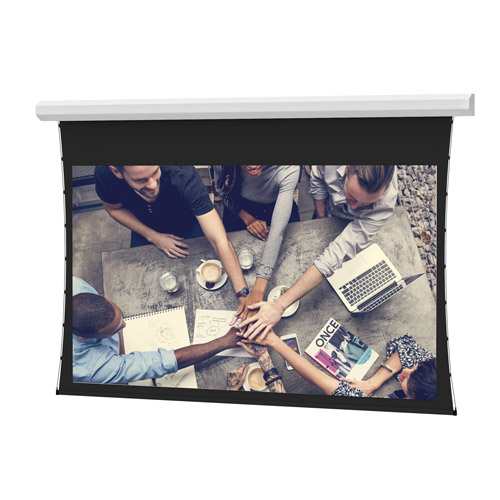

Da-Lite Tensioned Cosmopolitan Series, 100" x 160" with Da-Mat - 70258EL
Large venue electric projection screen with Da-Mat surface, 100" x 160" size, and 220V export motor
The Da-Lite 70258EL is a large venue, electric projection screen designed for front projection in ceiling or wall mount applications. This Tensioned Cosmopolitan Series model features a 100" x 160" screen area (189" diagonal) and is equipped with a Da-Mat surface to provide standard resolution performance. To accommodate international requirements, this specific SKU features a 220V (50Hz) motor for export markets. The screen utilizes TruGuide™ Electric Screen Tensioning System to ensure an optimal, smooth viewing surface, complemented by Smooth Roll Technology to maintain a perfectly flat screen. This unit includes built-in low voltage control and is TAA compliant. The housing features a standard white powder-coated finish, and the assembly includes a single-piece steel case with integrated mounting holes in the end caps. This specific model is scheduled for discontinuation on 10/30/26; the recommended direct replacement options are DL100178EL or DL100130EL.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 189 in (480.1 cm) |
| Screen Height | 100 in (254 cm) |
| Shipping Dimensions | 191" x 13" x 20" (485.1 x 33 x 50.8 cm) |
| Shipping Weight | 406 lbs (184.2 kg) |
| Size | 100" x 160" or 189" diagonal |
| Application | CeilingWall |
| Built-In Control | Low Voltage Control |
| Federal Ops Country of Origin | US |
All other specifications 10
| Motor | 220V (50Hz) for Export |
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Da-Mat |
| TAA Compliant | Yes |
| UPC | 717068813465 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller - DL15316
DL15316$504.00
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Locking Switch Cover Plate
98837$102.40
Questions about this part
Will this Da-Lite 70258EL fit my specific display configuration?
This 100" x 160" screen is designed for front projection and is TAA compliant for large venue applications. It features a Da-Mat surface for standard resolution viewing.
What motor voltage is required for the 70258EL?
This specific SKU is built with a 220V (50Hz) motor intended for export markets, rather than standard US 120V motors.
What is the difference between this and the Myriad Reveal series?
The Cosmopolitan Series is the predecessor to the Myriad Reveal series, which includes upgrades like SightLine Cable Drop for improved installation and viewing.
What accessories are needed for remote control of this screen?
You can add various control options such as the Da-Lite Screen Controller with Infrared Remote (DL16524) or the Screen Controller with PoE Injector (DL16521).
Which replacement should I use if I need a current model?
Because this model is scheduled for discontinuation on 10/30/26, Da-Lite recommends DL100178EL or DL100130EL as direct replacement options.
