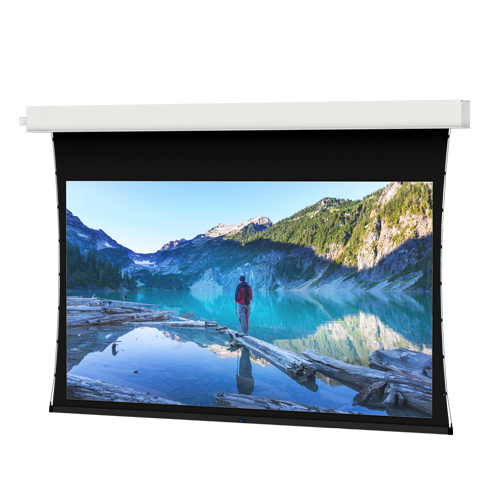

Da-Lite Tensioned Advantage Series, 78" x 139" with HD Progressive 1.1 Contrast - 89956FL
Ceiling recessed electric screen, 78" x 139" (159" diagonal), with HD Progressive 1.1 Contrast surface and TAA compliance
The Da-Lite 89956FL is a ceiling recessed electric screen from the Tensioned Advantage series, specifically configured for large venue front projection. This 78" x 139" (159" diagonal) unit features an HD Progressive 1.1 Contrast surface, designed to provide high-resolution imagery for professional environments. This specific SKU is the Surface, Roller, and Motor Assembly only; the screen case and box must be ordered separately. It is built with a standard 120V (60Hz) motor and includes standard low voltage control (LVC). This model is TAA compliant and features a white powder-coated, UL plenum rated case. The TruGuide™ Electric Screen Tensioning System and Smooth Roll Technology work together to maintain an optimal, perfectly flat viewing surface. This screen is designed for ceiling recessed applications, utilizing a two-stage installation process that allows the case to be installed during rough-in and the surface assembly during the finishing stage. The standard black drop provides a 12" border above the screen surface.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 159 in (403.9 cm) |
| Screen Height | 78 in (198.1 cm) |
| Shipping Weight | 109 lbs (49.4 kg) |
| Size | 78" x 139" or 159" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Slot |
| Drop Type | Standard Black Drop |
All other specifications 10
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Product Selection | Surface, Roller, and Motor Assembly Only (for case/box ordered separately) |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | High Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | HD Progressive 1.1 Contrast |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller - DL15316
DL15316$504.00
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Locking Switch Cover Plate
98837$102.40
Questions about this part
Does the 89956FL include the ceiling housing?
No, this SKU is for the Surface, Roller, and Motor Assembly only; the screen case and box must be ordered separately.
What motor and control setup does this screen use?
This model uses a standard 120V (60Hz) motor and comes with standard low voltage control (LVC).
How is the screen surface tensioned?
The screen utilizes the TruGuide™ Electric Screen Tensioning System to maintain a smooth, optimal viewing surface.
What is the screen size and format?
This is a 78" x 139" (159" diagonal) screen with a 16:9 HDTV format and a standard black drop.
Is this screen TAA compliant for government contracts?
Yes, this model is TAA compliant.
