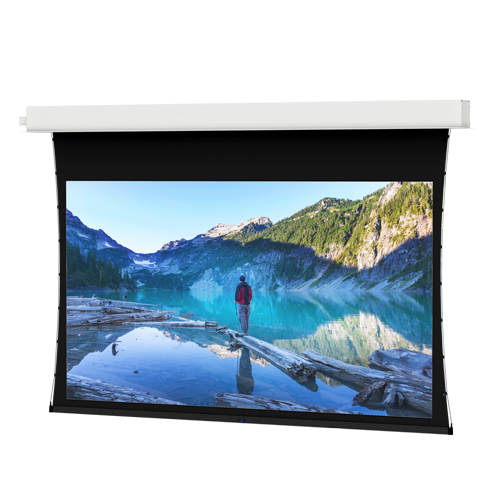

Da-Lite Tensioned Advantage Series, 65" x 116" with HD Progressive 1.1 Contrast - 89955LS
133" diagonal ceiling recessed electric screen with 65" x 116" surface and HD Progressive 1.1 Contrast finish
The Da-Lite 89955LS is a Tensioned Advantage Series electric screen designed for ceiling recessed applications. This 133 in (337.8 cm) diagonal unit features a 65 in (165.1 cm) screen height and a 65" x 116" screen format with 16:9 HDTV aspect ratio. Utilizing the HD Progressive 1.1 Contrast surface, it provides high-resolution front projection performance with a standard black drop of 12". The screen utilizes Smooth Roll Technology and a TruGuide™ Electric Screen Tensioning System to maintain an optimal, perfectly flat viewing surface. This model is TAA compliant and features a white powder-coated case with a slot-style closure door. Installation is flexible due to two-stage mounting; the case can be installed during the rough-in stage, while the screen surface assembly is completed during the finishing stage. It operates on standard 120V (60Hz) power and includes standard low voltage control for flexible operation within professional AV environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 133 in (337.8 cm) |
| Screen Height | 65 in (165.1 cm) |
| Shipping Dimensions | 142" x 13" x 10" (360.7 x 33 x 25.4 cm) |
| Shipping Weight | 136 lbs (61.7 kg) |
| Size | 65" x 116" or 133" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Slot |
All other specifications 13
| Drop Type | Standard Black Drop |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Product Selection | Complete Screen |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | High Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | HD Progressive 1.1 Contrast |
| TAA Compliant | Yes |
| UPC | 717068305816 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller - DL15316
DL15316$504.00
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Locking Switch Cover Plate
98837$102.40
Questions about this part
What are the dimensions of the 89955LS screen?
This model has a 133 in (337.8 cm) diagonal with a screen height of 65 in (165.1 cm) and a width of 116 in.
How is the installation handled for this ceiling recessed screen?
The two-stage installation allows you to install the housing during rough-in and the surface assembly during finishing. Sliding brackets allow for flexible mounting to the structure above the drop ceiling.
What control options are compatible with this Da-Lite screen?
It features standard low voltage control. Compatible accessories include the Da-Lite Screen Controller with an infrared remote (DL16524) or PoE injector (DL16525) and the Smart Low Voltage Wall Switch (DL16622).
Does this screen support front projection?
Yes, this is a front projection screen featuring the HD Progressive 1.1 Contrast surface with a standard black backing to retain projected brightness.
Is this screen TAA compliant?
Yes, this specific SKU is TAA compliant, making it suitable for projects with federal acquisition regulations.
