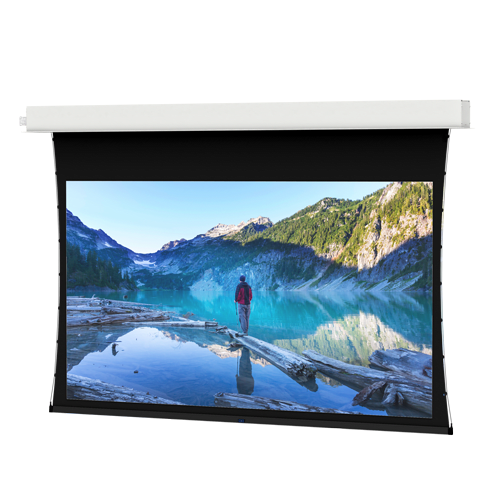

Da-Lite Tensioned Advantage Series, 65" x 116" with HD Progressive 1.1 Contrast - 89955EBLS
Ceiling recessed electric screen with HD Progressive 1.1 Contrast surface, 133" diagonal, and standard black drop
The Da-Lite 89955EBLS is a Tensioned Advantage Series ceiling recessed electric screen designed for professional large venue environments. This 133" diagonal (337.8 cm) screen features a 65" height (165.1 cm) and utilizes the HD Progressive 1.1 Contrast surface for high-resolution front projection. This specific SKU is configured for export, utilizing a 220V (50Hz) motor. It is TAA compliant and features a UL plenum rated white powder-coated case designed to be installed during the rough-in stage of construction. The screen is designed to conceal the rough opening with built-in ceiling trim, eliminating the need for additional finish work. It includes a standard black drop of 12" and is equipped with standard low voltage control. For installers requiring specific control options, compatible accessories include the Da-Lite Screen Controller with PoE Injector (DL16525) or the Smart Low Voltage Wall Switch (DL16622). The TruGuide™ Electric Screen Tensioning System and Smooth Roll Technology work together to maintain a perfectly flat, tensioned viewing surface.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 133 in (337.8 cm) |
| Screen Height | 65 in (165.1 cm) |
| Shipping Weight | 136 lbs (61.7 kg) |
| Size | 65" x 116" or 133" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Slot |
| Drop Type | Standard Black Drop |
All other specifications 10
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Product Selection | Case/Box Only for Rough-In |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | High Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | HD Progressive 1.1 Contrast |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller - DL15316
DL15316$504.00
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Locking Switch Cover Plate
98837$102.40
Questions about this part
Will the 89955EBLS fit my ceiling installation?
This is a ceiling recessed screen. It is designed for two-stage installation: the case is installed during the rough-in stage, and the surface assembly is installed during the finishing stage.
What is the voltage requirement for this specific model?
The 89955EBLS is configured with a 220V (50Hz) motor intended for export markets.
What control options are available for this screen?
This model includes standard low voltage control. You can also add accessories like the Da-Lite Screen Controller with Infrared Remote (DL16524) or a PoE Injector (DL16521).
Is this screen TAA compliant?
Yes, this product is TAA compliant and carries CE certification.
How do I achieve a floating screen look instead of a black drop?
While this SKU features a standard 12" black drop, Da-Lite's SightLine™ cable drop feature (available on other Tensioned Advantage models) provides a floating effect without a black border.
