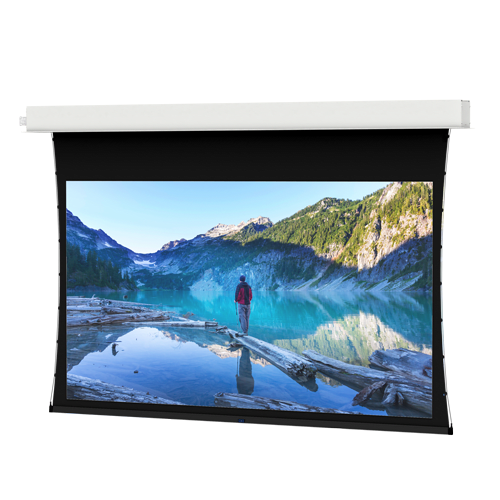

Da-Lite Tensioned Advantage Series, 54" x 96" with HD Progressive ReView 0.9 - 94239LS
Ceiling recessed electric rear projection screen, 54" x 96" (110" diagonal), featuring HD Progressive ReView 0.9 surface
The Da-Lite 94239LS is a Tensioned Advantage Series ceiling recessed electric screen designed for rear projection applications. This 110 in (279.4 cm) diagonal screen features a 54 in (137.2 cm) height and utilizes the HD Progressive ReView 0.9 surface for high-resolution projection. It is designed for seamless integration into ceiling architectures, featuring a white powder-coated case that helps conceal the rough opening. The installation process is flexible; the screen case can be installed during the rough-in construction stage, while the surface assembly is completed during the finishing stage. It utilizes Smooth Roll Technology to ensure the screen surface remains perfectly flat, complemented by the TruGuide™ Electric Screen Tensioning System for an optimal viewing surface. This TAA compliant model operates on a standard 120V (60Hz) motor and includes standard low voltage control, allowing for various control integration options. For installation, this unit is designed for ceiling recessed applications and is manufactured in the US.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 110 in (279.4 cm) |
| Screen Height | 54 in (137.2 cm) |
| Shipping Dimensions | 123" x 13" x 10" (312.4 x 33 x 25.4 cm) |
| Shipping Weight | 117 lbs (53.1 kg) |
| Size | 54" x 96" or 110" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Slot |
All other specifications 13
| Drop Type | Standard Black Drop |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Product Selection | Complete Screen |
| Projection Type | Rear Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | High Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | HD Progressive ReView 0.9 |
| TAA Compliant | Yes |
| UPC | 717068337817 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Screen Controller - DL15316
DL15316$504.00
Questions about this part
Will this Da-Lite 94239LS screen work for rear projection?
Yes, this SKU is specifically configured with an HD Progressive ReView 0.9 surface designed for rear projection applications.
What controls are compatible with the 94239LS?
The 94239LS features standard low voltage control. You can also add accessories like the DL16524 infrared remote controller or the DL16521 PoE injector for advanced control integration.
How is the screen surface kept flat during use?
The screen utilizes Smooth Roll Technology combined with the TruGuide™ Electric Screen Tensioning System to maintain a perfectly flat viewing surface.
Is this screen TAA compliant for government projects?
Yes, the 94239LS is TAA compliant and is manufactured in the United States.
What is the vertical drop distance for this screen?
This model features a standard black drop of 12 inches, which helps retain projected brightness on front projection surfaces.
