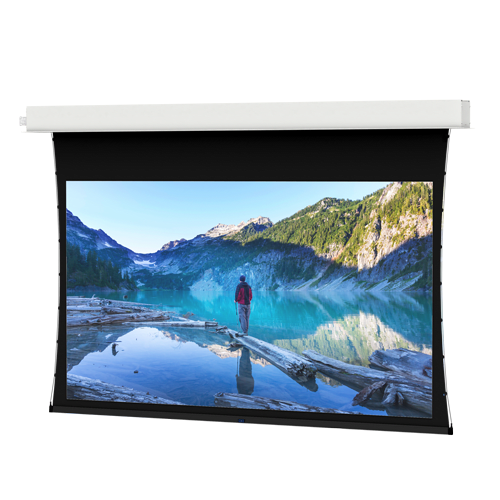

Da-Lite Tensioned Advantage Series, 54" x 96" with HD Progressive ReView 0.9 - 94239FLS
110" diagonal ceiling recessed rear projection screen with HD Progressive ReView 0.9 surface and standard 120V motor
The Da-Lite 94239FLS is a Tensioned Advantage Series ceiling recessed electric screen designed for professional rear projection applications. This 110 in (279.4 cm) diagonal unit features a 54 in (137.2 cm) height and a 54" x 96" aspect ratio in an HDTV (16:9) format. Utilizing the HD Progressive ReView 0.9 surface, it provides a high-resolution projection area optimized for large venue environments. This specific SKU is the Surface, Roller, and Motor Assembly Only; the case and box must be ordered separately. Engineered for efficient installation, the Tensioned Advantage series features a two-stage process where the case can be installed during rough-in construction and the surface assembly during the finishing stage. It includes a standard 120V (60Hz) motor and features standard low voltage control. For improved aesthetics, the TruGuide™ Electric Screen Tensioning System maintains a perfectly flat viewing surface, while the Smooth Roll Technology ensures quiet, reliable operation. This TAA compliant assembly is finished with a white powder-coated case and includes a slot closure door. This unit is specifically for ceiling recessed applications, providing a clean, integrated look in professional AV environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 110 in (279.4 cm) |
| Screen Height | 54 in (137.2 cm) |
| Size | 54" x 96" or 110" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Slot |
| Drop Type | Standard Black Drop |
| Federal Ops Country of Origin | US |
All other specifications 9
| Motor | Standard 120V (60Hz) |
| Product Selection | Surface, Roller, and Motor Assembly Only (for case/box ordered separately) |
| Projection Type | Rear Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | High Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | HD Progressive ReView 0.9 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Screen Controller - DL15316
DL15316$504.00
Questions about this part
Yes, this is a ceiling recessed model designed with ceiling trim to conceal the rough opening once installed.
Yes, this is a ceiling recessed model designed with ceiling trim to conceal the rough opening once installed.
The 94239FLS is a standard Tensioned Advantage screen with a 12" black drop, whereas SightLine models use cables to create a floating effect.
The 94239FLS is a standard Tensioned Advantage screen with a 12" black drop, whereas SightLine models use cables to create a floating effect.
No, this SKU is the Surface, Roller, and Motor Assembly Only; the case and box must be ordered separately.
No, this SKU is the Surface, Roller, and Motor Assembly Only; the case and box must be ordered separately.
The 94239FLS is specifically designed for rear projection using the HD Progressive ReView 0.9 surface.
The 94239FLS is specifically designed for rear projection using the HD Progressive ReView 0.9 surface.
This unit features standard low voltage control and is compatible with Da-Lite controllers such as the DL16524 infrared remote or DL16522 RF (BLE) remote.
This unit features standard low voltage control and is compatible with Da-Lite controllers such as the DL16524 infrared remote or DL16522 RF (BLE) remote.
