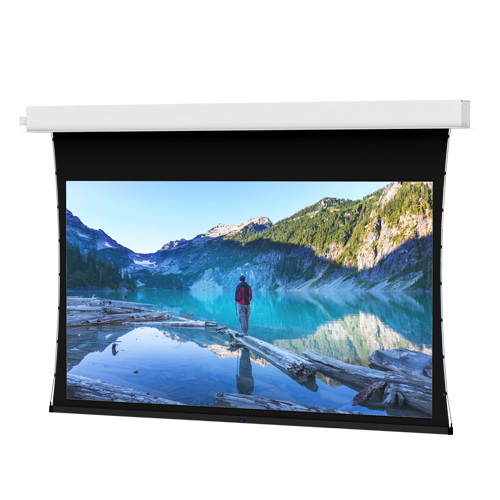

Da-Lite Tensioned Advantage Series, 52" x 92" with HD Progressive 1.1 Contrast - 89953FLS
Ceiling recessed electric screen, 52" x 92" with HD Progressive 1.1 Contrast surface and TAA compliance
The Da-Lite 89953FLS is a Tensioned Advantage Series ceiling recessed electric screen designed for high-quality front projection in large venue environments. This 52" x 92" (106 in / 269.2 cm diagonal) screen features an HD Progressive 1.1 Contrast surface to enhance image clarity. Designed for professional installation, this series is intended for ceiling recessed applications where the included ceiling trim conceals the rough opening, eliminating the need for additional trim work after installation. The unit features a white powder-coated case and a standard black drop of 12" to maintain consistent aesthetics. This SKU is a surface and roller assembly only; the case or box must be ordered separately. It is TAA compliant and features a standard 120V (60Hz) motor with standard low voltage control. The TruGuide™ Electric Screen Tensioning System and Smooth Roll Technology work together to ensure a perfectly flat, high-resolution viewing surface.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 106 in (269.2 cm) |
| Screen Height | 52 in (132.1 cm) |
| Shipping Dimensions | 120" x 10" x 13" (304.8 x 25.4 x 33 cm) |
| Shipping Weight | 75 lbs (34 kg) |
| Size | 52" x 92" or 106" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Slot |
All other specifications 13
| Drop Type | Standard Black Drop |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Product Selection | Surface, Roller, and Motor Assembly Only (for case/box ordered separately) |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | High Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | HD Progressive 1.1 Contrast |
| TAA Compliant | Yes |
| UPC | 717068223417 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Screen Controller - DL15316
DL15316$504.00
Questions about this part
Will this Da-Lite 89953FLS screen fit my projection setup?
This is a front projection screen with an HDTV (16:9) format and an HD Progressive 1.1 Contrast surface, ideal for large venue high-resolution requirements.
What do I need to order to complete this installation?
This SKU (89953FLS) is the surface and roller assembly only; the screen case or box must be ordered separately to complete the assembly.
What control options are compatible with this screen?
The screen includes standard low voltage control, but you can add accessories such as the Da-Lite Screen Controller with RF (BLE) Remote (DL16522) or a Smart Low Voltage Wall Switch (DL16622).
Does this screen require additional trim work after installation?
No, the Tensioned Advantage Series is designed with ceiling trim in place to conceal the rough opening once it is installed in a recessed application.
Is this product TAA compliant?
Yes, the 89953FLS is TAA compliant and is manufactured in the US.
