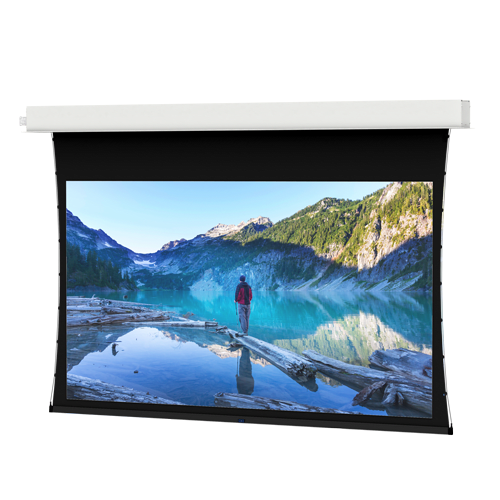

Da-Lite Tensioned Advantage Series, 50" x 80" with Parallax Pure 0.8 - 29667EBLS
Ceiling recessed electric screen, 50" x 80" format, featuring Parallax Pure 0.8 ambient light rejecting surface and 220V motor
The Da-Lite 29667EBLS is a Tensioned Advantage Series ceiling recessed electric screen designed for professional front projection environments. This 94 in (238.8 cm) diagonal screen utilizes a Wide 16:10 screen format and features the Parallax Pure 0.8 surface, which is engineered with a micro-layered, high-grade lens system to provide Ambient Light Rejecting (ALR) and high-resolution capabilities. Because of the unique surface, this model features a 2" standard black drop instead of the 12" drop found on standard vinyl surfaces. The unit is built with a white powder-coated case and includes standard low voltage control for flexible operation. This specific SKU is configured with a 220V (50Hz) motor for export markets. This TAA compliant solution is designed for ceiling recessed applications, allowing for a clean, integrated look within the architectural space.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 94 in (238.8 cm) |
| Screen Height | 50 in (127 cm) |
| Shipping Dimensions | 105" x 13" x 10" (266.7 x 33 x 25.4 cm) |
| Shipping Weight | 98 lbs (44.5 kg) |
| Size | 50" x 80" or 94" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Slot |
All other specifications 13
| Drop Type | Standard Black Drop |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Product Selection | Case/Box Only for Rough-In |
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | Ambient Light Rejecting (ALR)High Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Parallax Pure 0.8 |
| TAA Compliant | Yes |
| UPC | 717068474598 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller - DL15316
DL15316$504.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Locking Switch Cover Plate
98837$102.40
Questions about this part
Is the Da-Lite 29667EBLS TAA compliant?
Yes, this screen is TAA compliant and manufactured in the US.
What is the required voltage for this screen motor?
This specific model is equipped with a 220V (50Hz) motor intended for export use.
Does this screen include all necessary controls?
It features standard low voltage control. You can add accessories like the Da-Lite Screen Controller with PoE Injector (DL16521) or a Smart Low Voltage Wall Switch (DL16622) for expanded functionality.
How does the Parallax Pure surface differ from standard vinyl?
The Parallax Pure 0.8 surface uses a micro-layered lens system that provides high resolution and ambient light rejection, resulting in a 2" standard black drop rather than the typical 12" drop.
Which installation documents are available for the 29667EBLS?
Installers can access the Tensioned Advantage Series Instructions for setup or the Tensioned Advantage Series Specification Data for technical submittals.
