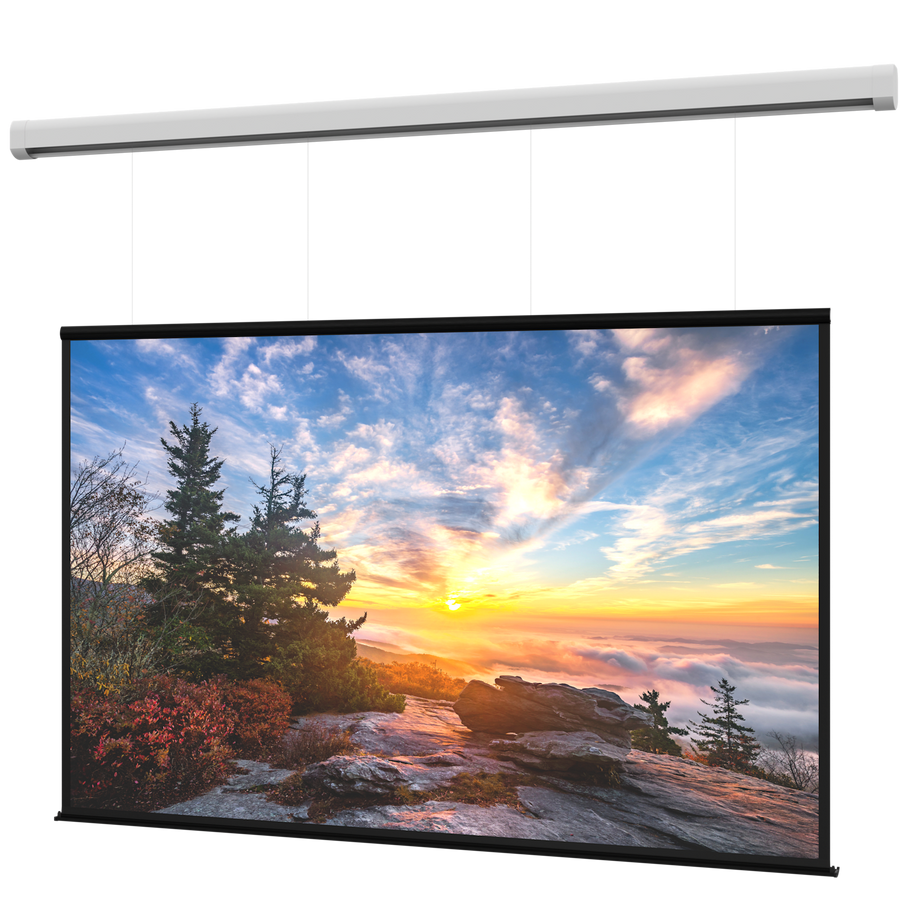

Da-Lite Myriad Reveal, 99" x 176" with Matte White - DL100205EL
99" x 176" electric projection screen with Matte White non-tensioned surface and SightLine cable drop for ceiling or wall mounting
The Da-Lite Myriad Reveal DL100205EL is a large venue electric projection screen designed for high-impact visual environments such as lecture halls, hotel ballrooms, and conference centers. This 99" x 176" (202" diagonal) unit features a 16:9 HDTV aspect ratio and a Matte White non-tensioned surface, optimized for front projection. Utilizing SightLine technology, this model employs a thin cable drop that eliminates the traditional black border above the screen, creating a sleek, waterfall aesthetic. This feature allows for a variable drop distance of up to 16' (5 m) between the ceiling and the top of the screen, providing installers with flexible vertical placement that preserves architectural interests and leaves space for camera or speaker mounting. This TAA-compliant solution is engineered for both ceiling and wall applications, featuring versatile brackets that allow for significant installation adjustments. Specifically, the unit offers ±0.5" (12.7 mm) of vertical case leveling and ±6" (152.4 mm) of horizontal centering to ensure a precise fit on any job site. For international deployments, this model is equipped with a 220V (50Hz) motor.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 202 in (513.1 cm) |
| Screen Height | 99 in (251.5 cm) |
| Screen Width | 176 in (447 cm) |
| Shipping Dimensions | 206.65" x 13" x 20.25" (524.9 x 33 x 51.4 cm) |
| Shipping Weight | 494 lbs (224.1 kg) |
| Size | 99" x 176" or 202" diagonal |
| Application | CeilingWall |
| Built-In Control | Low Voltage Control |
All other specifications 12
| Drop Type | SightLine Cable Drop |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Matte White (non-tensioned) |
| TAA Compliant | Yes |
| UPC | 840236913237 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Da-Lite Screen Controller - DL15316
DL15316$504.00
Questions about this part
How do I adjust the vertical and horizontal position of the screen during installation?
The Myriad Reveal features adjustable brackets that allow for ±0.5" (12.7 mm) of vertical case leveling and ±6" (152.4 mm) of horizontal centering.
What is the benefit of the SightLine cable drop on this Da-Lite screen?
The SightLine feature provides a thin, fully adjustable cable drop of up to 16' (5 m), which eliminates the black border above the screen and allows for flexible placement of cameras or speakers.
Can I add wireless or remote control options to this model?
Yes, this screen is compatible with several Da-Lite controllers, including RF (BLE) remote options like the DL16522 or DL16523, and Infrared remote options like the DL16524.
What kind of surface is on the DL100205EL?
This specific SKU features a non-tensioned Matte White surface designed for front projection in large venue settings.
Does this screen meet TAA compliance requirements?
Yes, the DL100205EL is TAA compliant and is manufactured in the US.
