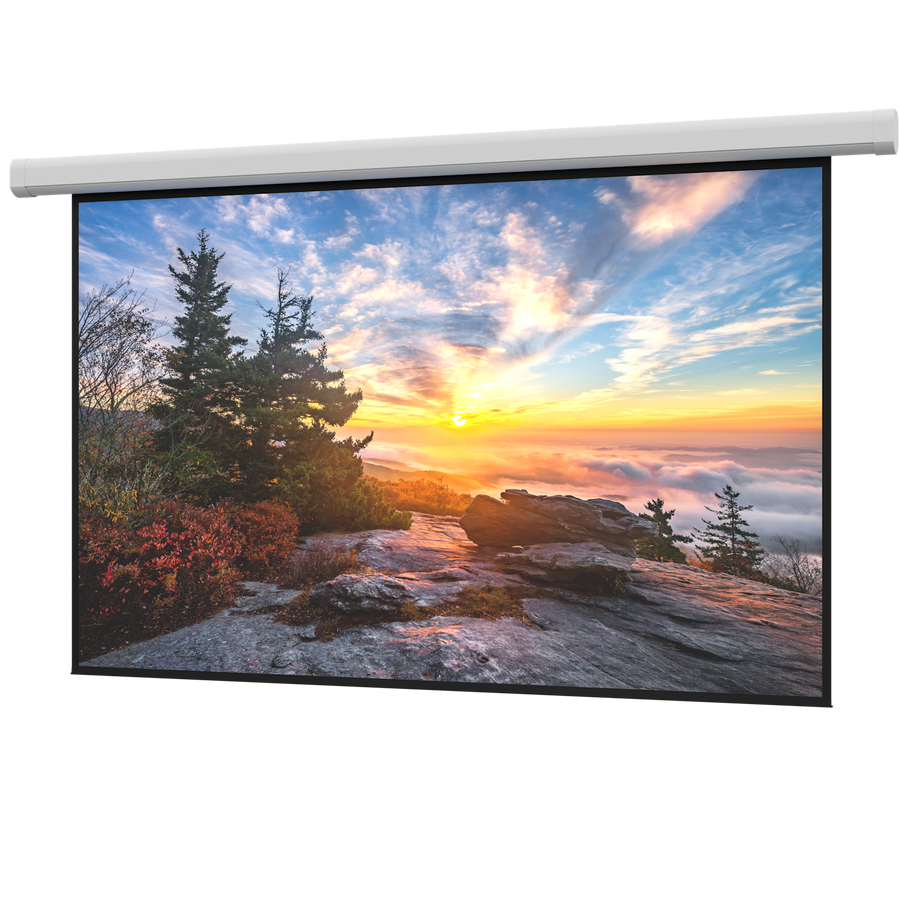

Da-Lite Myriad Reveal, 99" x 176" with Matte White - DL100198L
Electric 99" x 176" projection screen with Matte White surface, suitable for ceiling or wall mounting in large venues
The Da-Lite DL100198L is a large venue electric projection screen designed for high-impact environments like lecture halls, hotel ballrooms, and conference centers. This 99" x 176" (202" diagonal) screen features a non-tensioned Matte White surface and is configured with a standard black drop. It is engineered for front projection in 16:9 HDTV formats. Installation is streamlined by versatile brackets that allow for both ceiling and wall mounting. To ensure a precise fit during setup, the system includes built-in adjustability: the case can be leveled vertically by ±0.5" (12.7 mm) and centered horizontally by up to ±6" (152.4 mm). This model is TAA compliant and manufactured in the US. For electrical integration, the screen utilizes a standard 120V (60Hz) motor and features built-in low voltage control. Wiring access is simplified via a convenient push button located on the end cap.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 202 in (513.1 cm) |
| Screen Height | 99 in (251.5 cm) |
| Screen Width | 176 in (447 cm) |
| Shipping Dimensions | 203.5" x 13" x 20.25" (516.9 x 33 x 51.4 cm) |
| Shipping Weight | 399 lbs (181 kg) |
| Size | 99" x 176" or 202" diagonal |
| Application | CeilingWall |
| Built-In Control | Low Voltage Control |
All other specifications 12
| Drop Type | Standard Black Drop |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Matte White (non-tensioned) |
| TAA Compliant | Yes |
| UPC | 840236913107 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Da-Lite Screen Controller - DL15316
DL15316$504.00
Questions about this part
Will this Da-Lite DL100198L fit my 16:9 display setup?
Yes, this screen is specifically formatted for 16:9 HDTV projection. It features a 99" x 176" active area with a 202" diagonal measurement.
What mounting options are available for the Myriad Reveal?
The DL100198L can be installed in either a ceiling or wall mounting configuration using the included versatile adjustable brackets.
What do I need to purchase to control the screen motor?
While the screen includes low voltage control, you can add specialized control options such as the Da-Lite DL16522 RF (BLE) Remote or the DL16524 Infrared Remote.
How do I adjust the screen position once it is mounted?
The system allows for post-installation alignment with ±0.5" (12.7 mm) of vertical leveling and ±6" (152.4 mm) of horizontal centering.
What is the difference between the standard drop and SightLine models?
This DL100198L SKU features a standard black drop. SightLine models differ by using a cable drop to eliminate the black border above the screen surface.
