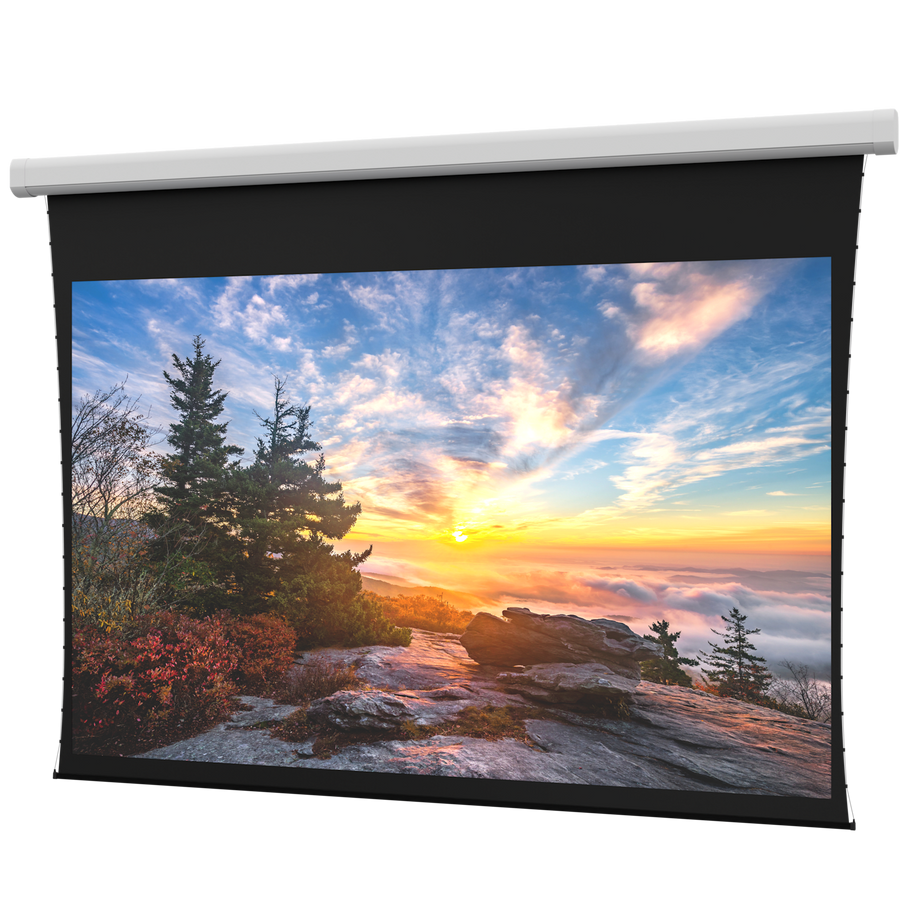

Da-Lite Myriad Reveal, 99" x 176" with HD Progressive 1.1 Contrast - DL100111L
Large venue electric projection screen, 99" x 176", featuring HD Progressive 1.1 Contrast surface and standard black drop
The DL100111L is a large venue electric projection screen within the Myriad Reveal series, specifically sized at 99" x 176" (202" diagonal). Designed for front projection in large meeting spaces, conference centers, lecture halls, and ballrooms, this screen features an HD Progressive 1.1 Contrast surface. It is TAA compliant and manufactured in the US. This model utilizes a standard black drop configuration and is powered by a standard 120V (60Hz) motor. For installation, the unit includes versatile brackets that accommodate both ceiling and wall mounting. The system provides built-in low voltage control and offers significant on-site adjustability, including ±.5" (12.7 mm) vertical case leveling and ±6" (152.4 mm) horizontal centering. The housing features a white powder-coated aluminum finish, though black is available upon request. To facilitate wiring, a convenient push button is located on the end cap for access.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 202 in (513.1 cm) |
| Screen Height | 99 in (251.5 cm) |
| Screen Width | 176 in (447 cm) |
| Shipping Dimensions | 212.75" x 13" x 20.25" (540.4 x 33 x 51.4 cm) |
| Shipping Weight | 418 lbs (189.6 kg) |
| Size | 99" x 176" or 202" diagonal |
| Application | CeilingWall |
| Built-In Control | Low Voltage Control |
All other specifications 12
| Drop Type | Standard Black Drop |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | High Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | HD Progressive 1.1 Contrast |
| TAA Compliant | Yes |
| UPC | 840236911769 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Da-Lite Screen Controller - DL15316
DL15316$504.00
Questions about this part
What are the dimensions of the DL100111L screen?
The screen measures 99" x 176" (251.5 x 447 mm), providing a total screen diagonal of 202" (513.1 cm).
Does the DL100111L work for ceiling or wall mounting?
Yes, this Myriad Reveal model is designed for both ceiling and wall applications using versatile, adjustable brackets.
What kind of control system is required for this screen?
The DL100111L includes built-in low voltage control and operates via a standard 120V (60Hz) motor.
Can I add a remote control to this Myriad Reveal screen?
Yes, you can integrate compatible controllers such as the Da-Lite DL16522 (RF BLE) or DL16524 (Infrared) via the available accessory options.
How much does the shipping package weigh?
The shipping weight for this unit is 418 lbs (189.6 kg) with dimensions of 212.75" x 13" x 20.25" (540.4 x 33 x 51.4 cm).
