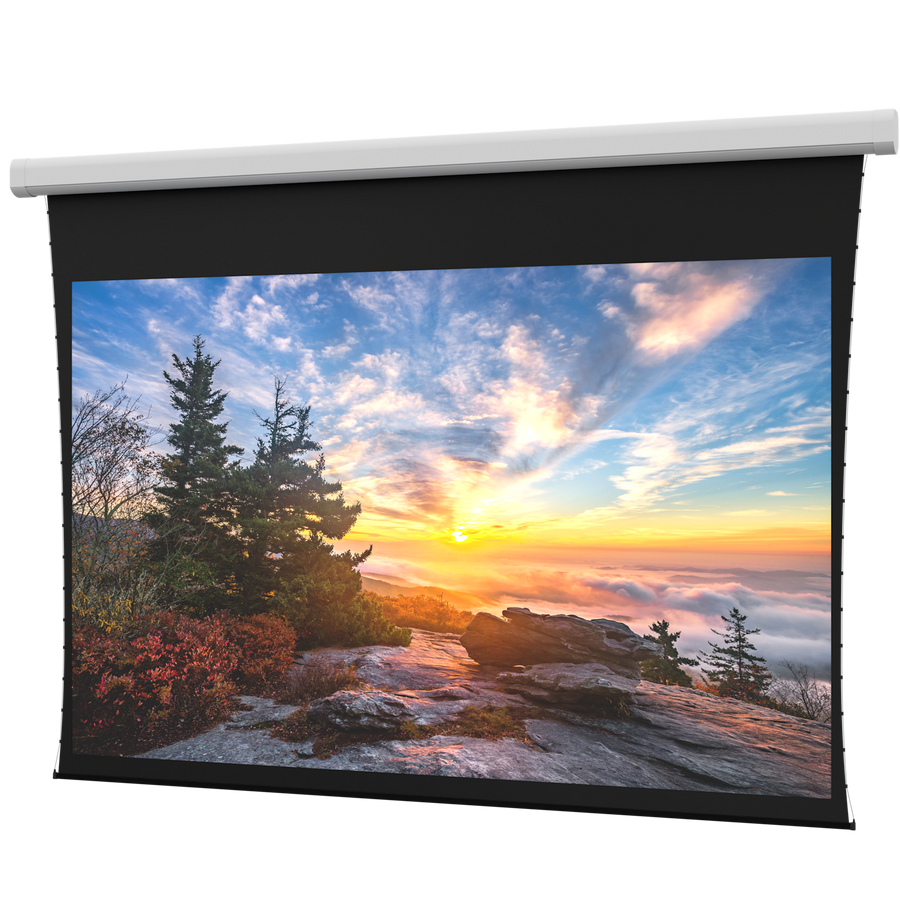

Da-Lite Myriad Reveal, 99" x 176" with HD Progressive 1.1 Contrast - DL100111EL
99" x 176" electric projection screen with HD Progressive 1.1 Contrast surface for large venue ceiling or wall mounting
The DL100111EL is a Myriad Reveal series electric screen designed for large venue applications such as hotel ballrooms, lecture halls, and conference centers. This 99" x 176" (202" diagonal) projection screen features an HD Progressive 1.1 Contrast surface and is configured for 16:9 HDTV formats. It is built for front projection and supports both ceiling and wall mounting through versatile, adjustable brackets. This specific model is configured with a standard black drop and utilizes a 220V (50Hz) motor for export use. Installation is simplified by built-in adjustability, allowing for ±0.5" (12.7 mm) of vertical case leveling and ±6" (152.4 mm) of horizontal centering. This TAA compliant product is manufactured in the US, making it suitable for federal operations. The end cap features a convenient push button to allow easy access to the internal wiring for system integrators.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 202 in (513.1 cm) |
| Screen Height | 99 in (251.5 cm) |
| Screen Width | 176 in (447 cm) |
| Shipping Dimensions | 212.75" x 13" x 20.25" (540.4 x 33 x 51.4 cm) |
| Shipping Weight | 418 lbs (189.6 kg) |
| Size | 99" x 176" or 202" diagonal |
| Application | CeilingWall |
| Built-In Control | Low Voltage Control |
All other specifications 12
| Drop Type | Standard Black Drop |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | High Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | HD Progressive 1.1 Contrast |
| TAA Compliant | Yes |
| UPC | 840236912001 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Da-Lite Screen Controller - DL15316
DL15316$504.00
Questions about this part
Will this Myriad Reveal screen work with my existing control system?
The DL100111EL features built-in low voltage control and is compatible with various Da-Lite controllers, such as the DL15316 or the DL16523 which includes a PoE injector.
What is the difference between the black drop and SightLine versions?
This model features a standard black drop. SightLine versions utilize a specialized cable drop to suspend the surface and eliminate the black border above the projection area.
What mounting requirements should I prepare for?
The screen can be installed in either ceiling or wall applications. The mounting brackets allow for ±6" (152.4 mm) of horizontal centering and ±0.5" (12.7 mm) of vertical case leveling during installation.
Is this screen suitable for government projects?
Yes, the DL100111EL is TAA Compliant and is manufactured in the US.
What do I need for submittals or installation planning?
Installers can use the Myriad Reveal Series CAD models, BIM models, or the Myriad Reveal Instructions found in the technical resources for precise planning.
