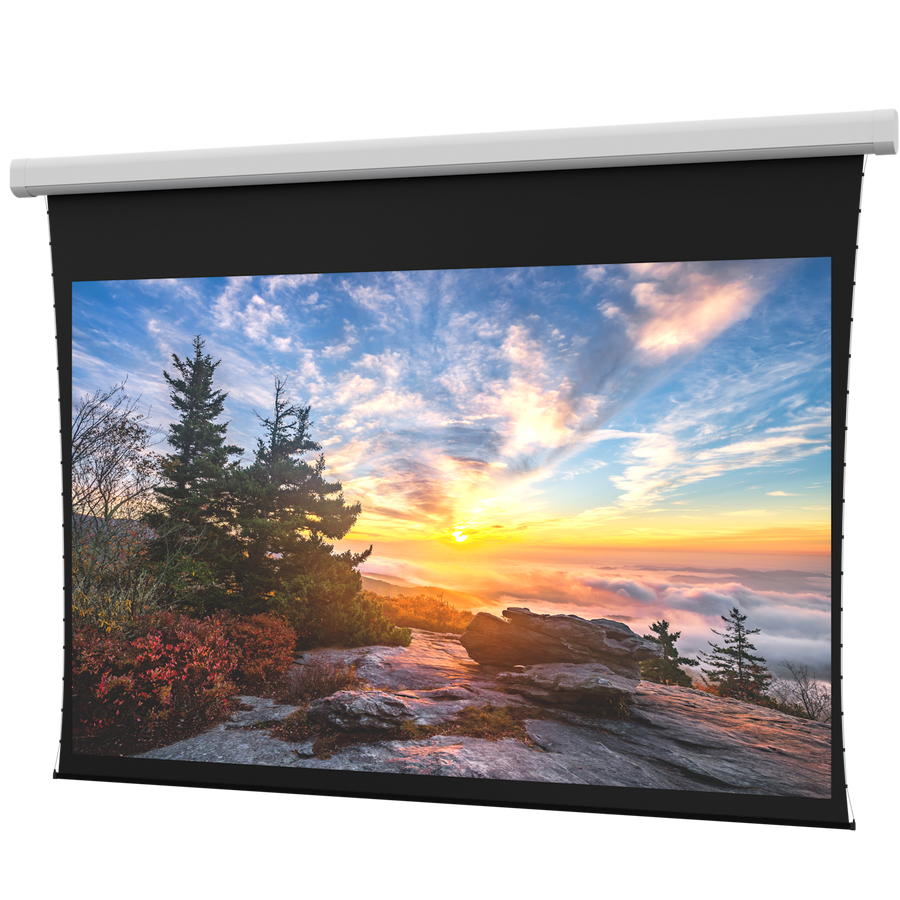

Da-Lite Myriad Reveal, 99" x 176" with HD Progressive 1.0 - DL100110L
Large venue electric projection screen with HD Progressive 1.0 surface, 99" x 176" size, and standard black drop
The DL100110L is a Da-Lite Myriad Reveal series electric projection screen designed for large venue applications. This 99" x 176" (202" diagonal) screen features an HD Progressive 1.0 high-resolution surface, optimized for front projection in 16:9 HDTV formats. Built for versatile installation, it can be ceiling or wall mounted using adjustable brackets. This specific model features a standard black drop and is powered by a standard 120V (60Hz) motor with built-in low voltage control. For installers requiring specific submittals, Myriad Reveal technical documentation includes CAD models, BIM files, and comprehensive CSI 3-part specifications. This TAA compliant unit is manufactured in the US, making it suitable for federal operations requiring domestic origin. The mounting system provides critical installation flexibility with ±.5" (12.7 mm) vertical case leveling and ±6" (152.4 mm) horizontal centering adjustability to ensure precise alignment in lecture halls, ballrooms, or large conference centers.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 202 in (513.1 cm) |
| Screen Height | 99 in (251.5 cm) |
| Screen Width | 176 in (447 cm) |
| Shipping Dimensions | 212.75" x 13" x 20.25" (540.4 x 33 x 51.4 cm) |
| Shipping Weight | 418 lbs (189.6 kg) |
| Size | 99" x 176" or 202" diagonal |
| Application | CeilingWall |
| Built-In Control | Low Voltage Control |
All other specifications 12
| Drop Type | Standard Black Drop |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | High Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | HD Progressive 1.0 |
| TAA Compliant | Yes |
| UPC | 840236911752 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Da-Lite Screen Controller - DL15316
DL15316$504.00
Questions about this part
What mounting requirements are needed for the DL100110L?
This screen supports both ceiling and wall mounting. The adjustable brackets allow for vertical case leveling within ±.5" (12.7 mm) and horizontal centering up to ±6" (152.4 mm).
Will this screen fit my projection setup?
This is a front projection screen with a 16:9 HDTV aspect ratio. It features an HD Progressive 1.0 surface designed for high-resolution large venue applications.
What additional controllers are compatible with this Myriad Reveal screen?
Compatible control options include Da-Lite screen controllers such as the DL16522 (RF/BLE remote), DL16524 (Infrared remote), or the DL15316 controller.
Is this screen TAA compliant?
Yes, the DL100110L is TAA compliant and is manufactured in the US, meeting Federal Ops requirements for country of origin.
What is the drop type for this specific model?
The DL100110L is configured with a Standard Black Drop. This differs from the SightLine models which offer variable cable drops.
