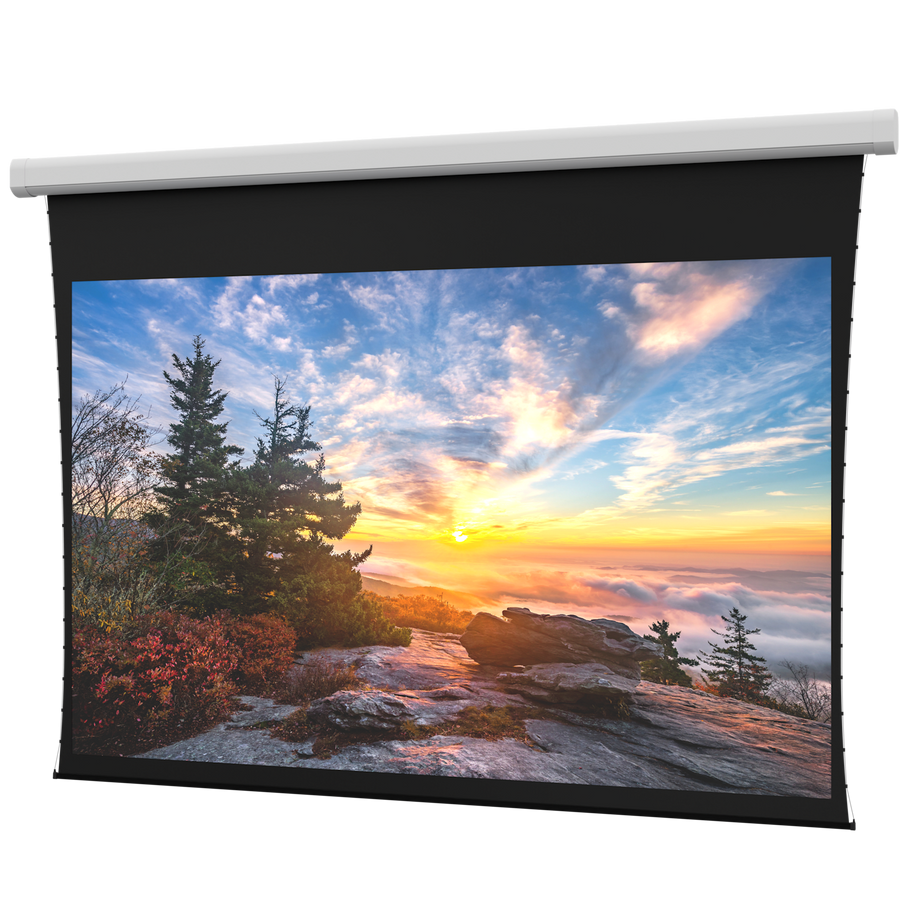

Da-Lite Myriad Reveal, 99" x 176" with Da-Tex - DL100115L
99" x 176" rear projection screen with Da-Tex surface, designed for ceiling or wall mounting in large venues
The Da-Lite DL100115L is a large venue Myriad Reveal series electric screen designed for professional rear projection applications. This 16:9 HDTV format screen measures 99" in height and 176" in width, providing a 202" diagonal viewing area. Featuring a Da-Tex surface, this screen is engineered for high-quality image reproduction in large meeting spaces, lecture halls, or hotel ballrooms. This model is configured with a standard 120V (60Hz) motor and includes a standard black drop for a clean aesthetic when the screen is retracted. Installation flexibility is a core feature of the Myriad Reveal series. The adjustable brackets allow for both wall and ceiling mounting applications. For the integrator, ease of setup is facilitated by built-in case leveling, which allows for ±.5" (12.7 mm) of vertical adjustment, and horizontal centering adjustability of up to ±6" (152.4 mm). This specific SKU is TAA compliant, making it suitable for government and regulated contract projects. For control, this unit features built-in low voltage control, though additional wireless or PoE controllers can be integrated as needed.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 202 in (513.1 cm) |
| Screen Height | 99 in (251.5 cm) |
| Screen Width | 176 in (447 cm) |
| Shipping Dimensions | 212.75" x 13" x 20.25" (540.4 x 33 x 51.4 cm) |
| Shipping Weight | 418 lbs (189.6 kg) |
| Size | 99" x 176" or 202" diagonal |
| Application | CeilingWall |
| Built-In Control | Low Voltage Control |
All other specifications 12
| Drop Type | Standard Black Drop |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Projection Type | Rear Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Da-Tex |
| TAA Compliant | Yes |
| UPC | 840236911806 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Da-Lite Screen Controller - DL15316
DL15316$504.00
Questions about this part
What are the dimensions of the DL100115L screen?
The screen measures 99" in height and 176" in width, providing a 202" diagonal viewing area.
Can the DL100115L be mounted on a ceiling?
Yes, the Myriad Reveal series is designed for both ceiling and wall mounting applications.
What do I need to control the DL100115L screen?
This unit features built-in low voltage control. For expanded functionality, you can add accessories like the DL16522 RF (BLE) Remote Controller or the DL16525 PoE Injector with Infrared Remote.
How much adjustment is available during installation?
The brackets allow for ±.5" (12.7 mm) of vertical case leveling and ±6" (152.4 mm) of horizontal centering.
Is this screen TAA compliant?
Yes, the DL100115L is TAA compliant.
