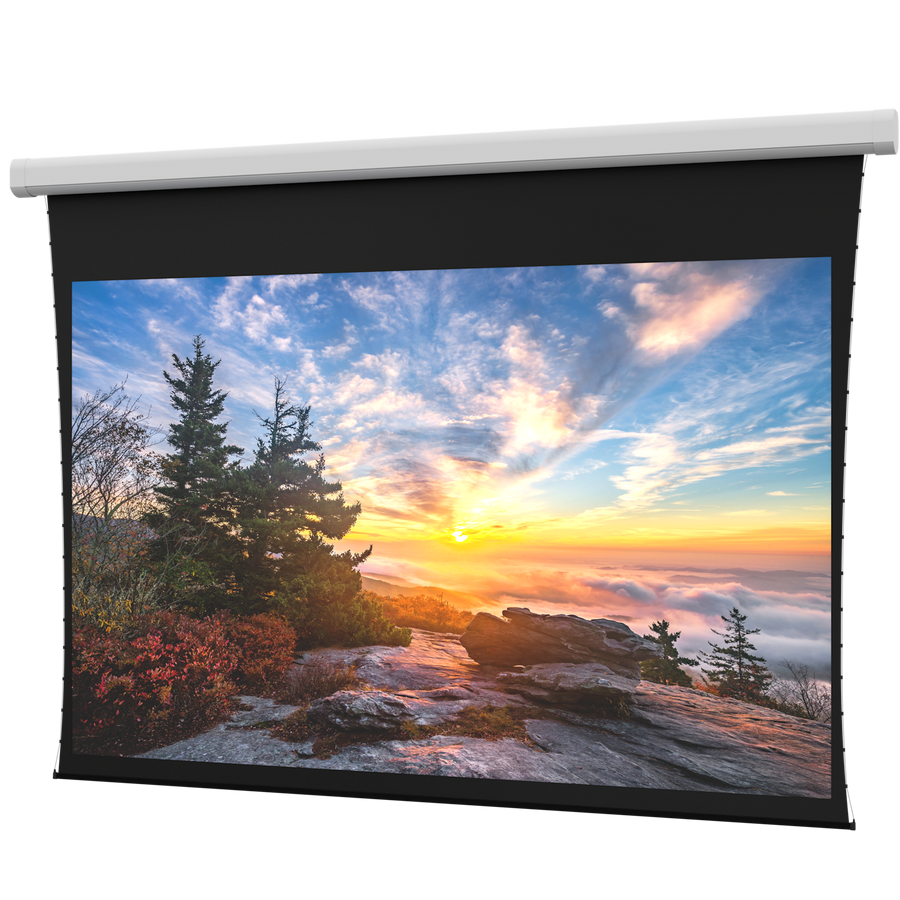

Da-Lite Myriad Reveal, 99" x 176" with Da-Tex - DL100115EL
Rear projection screen for large venue environments, featuring a 99" x 176" Da-Tex surface and 220V motor
The Da-Lite DL100115EL Myriad Reveal is an electric rear projection screen designed for large venue applications such as lecture halls, hotel ballrooms, and conference centers. This 99" x 176" (251.5 cm x 447 cm) screen, providing a 202" (513.1 cm) diagonal, is configured with a Da-Tex surface designed for standard resolution rear projection. Built for global installations, this model features a 220V (50Hz) motor intended for export markets. The series is designed for versatile installation in either ceiling or wall-mounted configurations. This specific SKU features a standard black drop and is TAA compliant. For ease of integration, the end cap includes a convenient push button to allow direct access to the internal wiring. The Myriad Reveal series provides installers with adjustable brackets that allow for ±.5” (12.7 mm) vertical case leveling and ±6” (152.4 mm) horizontal centering during installation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 202 in (513.1 cm) |
| Screen Height | 99 in (251.5 cm) |
| Screen Width | 176 in (447 cm) |
| Shipping Dimensions | 212.75" x 13" x 20.25" (540.4 x 33 x 51.4 cm) |
| Shipping Weight | 418 lbs (189.6 kg) |
| Size | 99" x 176" or 202" diagonal |
| Application | CeilingWall |
| Built-In Control | Low Voltage Control |
All other specifications 12
| Drop Type | Standard Black Drop |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Projection Type | Rear Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Da-Tex |
| TAA Compliant | Yes |
| UPC | 840236912049 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Da-Lite Screen Controller - DL15316
DL15316$504.00
Questions about this part
Will this Da-Lite DL100115EL fit my projection setup?
This is a rear projection screen with a Da-Tex surface, designed for 16:9 HDTV formats in large venue settings.
What motor voltage is required for the DL100115EL?
This specific model is equipped with a 220V (50Hz) motor, which is intended for export use.
Is the DL100115EL TAA compliant?
Yes, this product is TAA compliant, making it suitable for various procurement requirements.
What mounting options are available for the Myriad Reveal series?
The Myriad Reveal series supports both ceiling and wall mounting applications to suit your architectural needs.
How do I access the wiring on this screen?
The end cap of the unit features a push button that allows installers to access the wiring easily.
