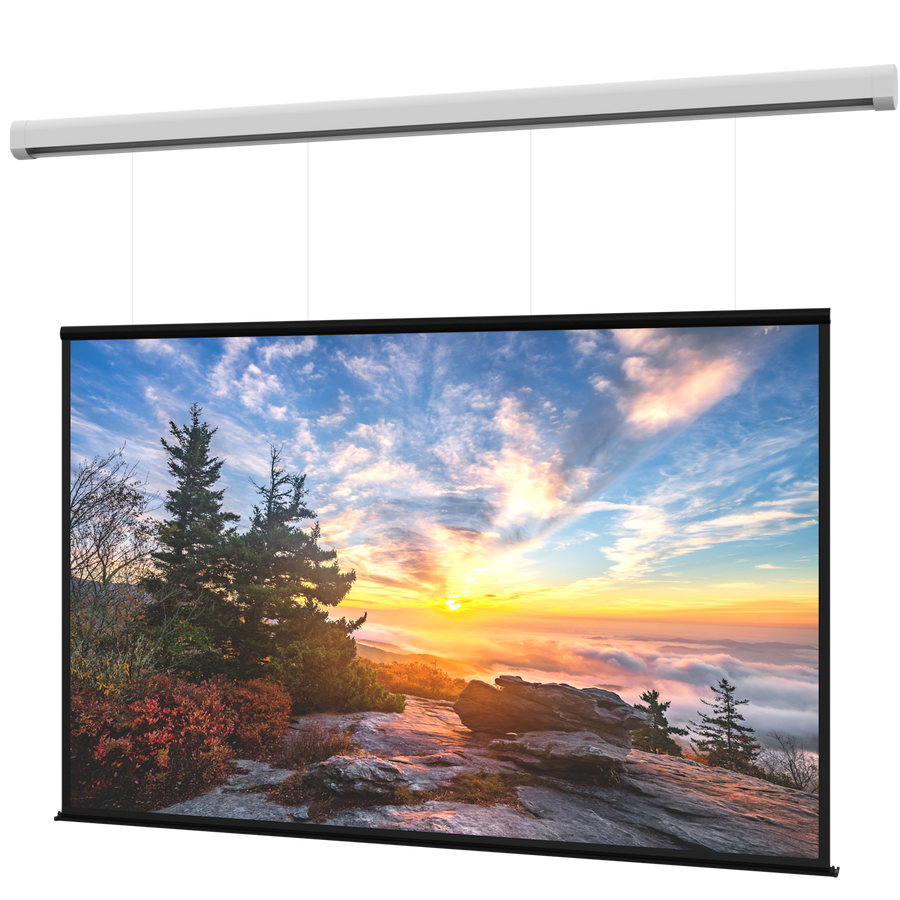

Da-Lite Myriad Reveal, 94.5" x 168" with Matte White - DL100203L
Large venue electric screen featuring SightLine cable drop and matte white non-tensioned surface, measuring 94.5" x 168"
The Da-Lite DL100203L is a large venue electric projection screen designed for front projection applications in professional environments. This 94.5" x 168" (426.7 x 240 cm) Myriad Reveal series screen features a non-tensioned matte white surface and is configured for a 16:9 HDTV screen format. A key feature of this model is the SightLine cable drop, which provides a fully adjustable cable length of up to 16’ (5 m) between the ceiling and the top of the screen. This adjustable drop allows installers to preserve architectural interests by creating usable space above the viewing area for speaker or camera placement. This specific SKU includes built-in low voltage control and operates on a standard 120V (60Hz) motor. For installation, the unit offers vertical case leveling of ±.5” (12.7 mm) and horizontal centering adjustability of ±6” (152.4 mm). This TAA compliant screen is suitable for ceiling or wall mounting in large meeting spaces, lecture halls, or hotel ballrooms.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 193 in (490.2 cm) |
| Screen Height | 94.5 in (240 cm) |
| Screen Width | 168 in (426.7 cm) |
| Shipping Dimensions | 198.65" x 13" x 20.25" (504.6 x 33 x 51.4 cm) |
| Shipping Weight | 475 lbs (215.5 kg) |
| Size | 94.5" x 168" or 193" diagonal |
| Application | CeilingWall |
| Built-In Control | Low Voltage Control |
All other specifications 12
| Drop Type | SightLine Cable Drop |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Matte White (non-tensioned) |
| TAA Compliant | Yes |
| UPC | 840236913206 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Da-Lite Screen Controller - DL15316
DL15316$504.00
Questions about this part
Will the DL100203L work for my ceiling or wall installation?
Yes, this Myriad Reveal model is designed for both ceiling and wall mounting applications.
What is the maximum drop distance for the SightLine cable?
The SightLine feature on this DL100203L model accommodates a cable drop distance of up to 16’ (5 m) between the ceiling and the top of the screen.
Does this screen include the necessary controllers?
This unit features built-in low voltage control; however, separate controllers like the Da-Lite DL16522 RF (BLE) remote or DL16524 Infrared remote can be added.
How does the SightLine feature affect the screen's appearance?
The SightLine cable drop elegantly suspends the screen surface to eliminate the black drop typically found above projection screens.
Is this screen TAA compliant?
Yes, the DL100203L is TAA compliant.
