Da-Lite Myriad Reveal, 94.5" x 168" with Matte White - DL100203EL
SightLine electric projection screen in 16:9 format, 94.5" x 168" dimensions, with a Matte White non-tensioned surface

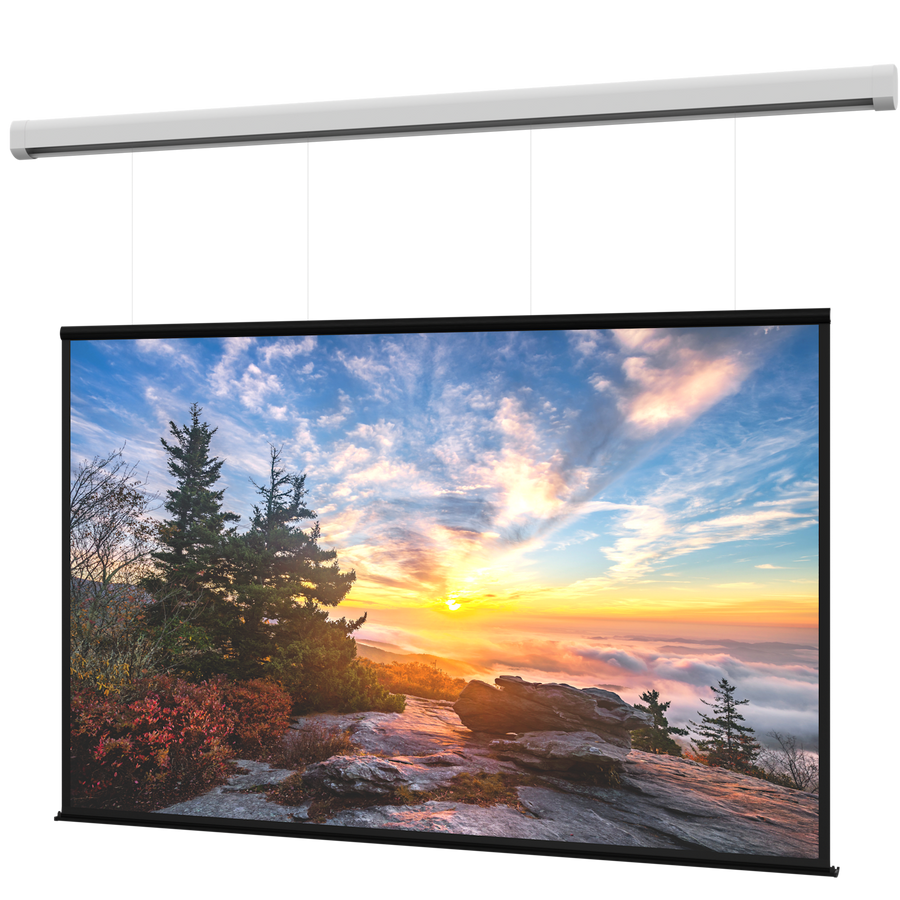

The Da-Lite DL100203EL is a high-performance electric projection screen designed for large venues such as lecture halls, conference centers, and hotel ballrooms. This 16:9 HDTV format screen features a Matte White non-tensioned surface, ideal for front projection applications. This specific SKU utilizes the SightLine cable drop feature, which elegantly suspends the screen surface to eliminate the traditional black drop seen in standard models. This technology allows for a variable vertical placement, accommodating a drop distance of up to 16' (5 m) between the ceiling and the top of the screen. This Myriad Reveal model is designed for versatile installation, supporting both ceiling and wall mounting. The system includes built-in low voltage control and provides installers with significant adjustability: the case can be leveled vertically by ±.5" (12.7 mm) and centered horizontally by ±6" (152.4 mm). The integrated weighted bar in SightLine models functions as a black closure door when the screen is deployed, then rotates to white when retracted to maintain a clean aesthetic. This TAA compliant product is manufactured in the US and is intended for professional large-format projection environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 193 in (490.2 cm) |
| Screen Height | 94.5 in (240 cm) |
| Screen Width | 168 in (426.7 cm) |
| Shipping Dimensions | 198.65" x 13" x 20.25" (504.6 x 33 x 51.4 cm) |
| Shipping Weight | 475 lbs (215.5 kg) |
| Size | 94.5" x 168" or 193" diagonal |
| Application | CeilingWall |
| Built-In Control | Low Voltage Control |
All other specifications 12
| Drop Type | SightLine Cable Drop |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Matte White (non-tensioned) |
| TAA Compliant | Yes |
| UPC | 840236913190 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Da-Lite Screen Controller - DL15316
DL15316$504.00
Questions about this part
How do I adjust the vertical and horizontal placement of the DL100203EL?
The Myriad Reveal series features built-in case leveling that allows for vertical adjustments of ±.5" (12.7 mm) and horizontal centering of up to ±6" (152.4 mm).
What is the benefit of the SightLine cable drop on this model?
The SightLine feature eliminates the black drop above the screen and allows the vertical placement to be adjusted up to 16' (5 m) between the ceiling and the top of the screen.
What control options are available for the DL100203EL?
This screen features built-in low voltage control. Compatible controllers include Da-Lite SKUs DL16522 (RF/BLE), DL16524 (Infrared), and DL16521 (PoE).
Does this screen require a tensioned system?
No, this specific SKU is a non-tensioned model featuring a Matte White surface.
Can I use the DL100203EL in a TAA compliant project?
Yes, this model is TAA compliant and is manufactured in the US.
