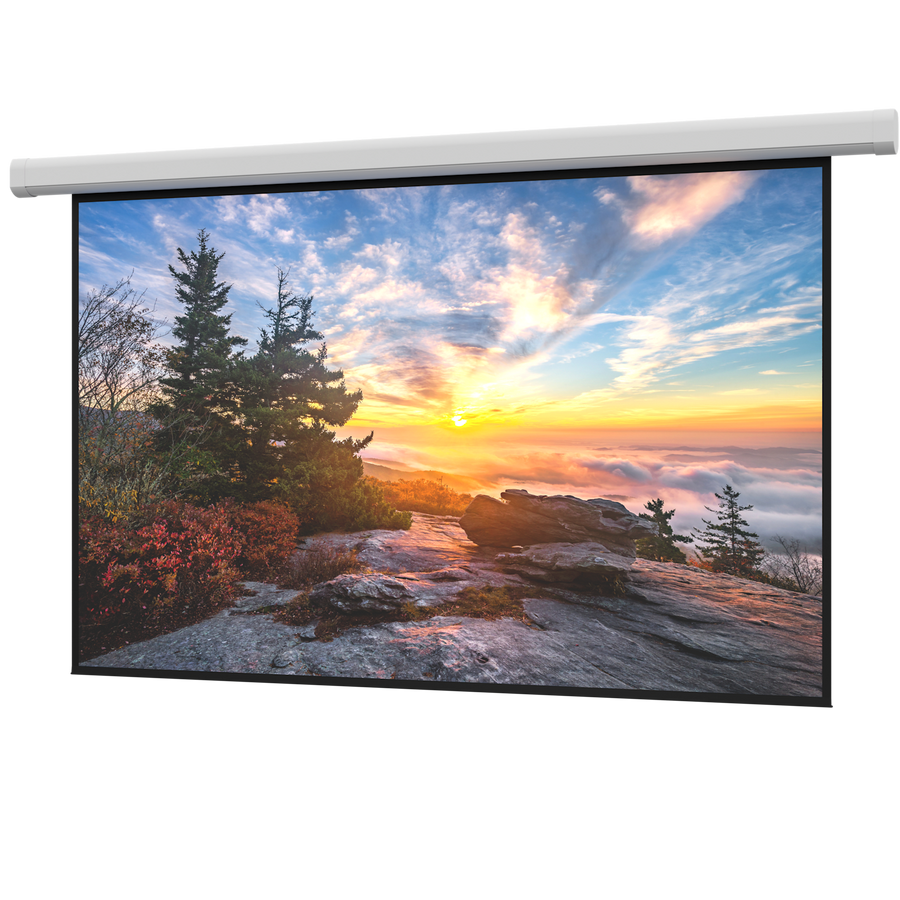

Da-Lite Myriad Reveal, 94.5" x 168" with Matte White - DL100196EL
Large venue 16:9 electric projection screen, 94.5" x 168" with Matte White surface and standard black drop
The Da-Lite Myriad Reveal DL100196EL is a high-performance electric projection screen designed for large venue applications such as lecture halls, conference centers, and hotel ballrooms. This 193 in (490.2 cm) diagonal screen features a 94.5 in (240 cm) height and a 168 in (426.7 cm) width, providing a massive 16:9 HDTV format for front projection. This specific configuration utilizes a non-tensioned Matte White surface and is equipped with a standard black drop. Engineered for professional installers, the Myriad Reveal series offers versatile installation options for both ceiling and wall mounting. The mounting brackets include built-in adjustability to simplify the setup process, providing ±.5” (12.7 mm) of vertical case leveling and ±6” (152.4 mm) of horizontal centering. This unit is designed for international use, featuring a 220V (50Hz) motor for export markets. For projects requiring regulatory compliance, this model is TAA compliant. This large-format screen provides a professional solution for any high-impact visual presentation space.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 193 in (490.2 cm) |
| Screen Height | 94.5 in (240 cm) |
| Screen Width | 168 in (426.7 cm) |
| Shipping Dimensions | 195.5" x 13" x 20.25" (496.6 x 33 x 51.4 cm) |
| Shipping Weight | 384 lbs (174.2 kg) |
| Size | 94.5" x 168" or 193" diagonal |
| Application | CeilingWall |
| Built-In Control | Low Voltage Control |
All other specifications 12
| Drop Type | Standard Black Drop |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Matte White (non-tensioned) |
| TAA Compliant | Yes |
| UPC | 840236913831 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Da-Lite Screen Controller - DL15316
DL15316$504.00
Questions about this part
What are the dimensions of the DL100196EL screen?
The screen measures 94.5 in (240 cm) in height and 168 in (426.7 cm) in width, providing a total diagonal of 193 in (490.2 cm).
Can this screen be mounted on a wall or ceiling?
Yes, the Myriad Reveal series is designed for both ceiling and wall mount applications using versatile, adjustable brackets.
What type of motor and voltage does this screen use?
This specific SKU is configured with a 220V (50Hz) motor intended for export markets.
Is the DL100196EL TAA compliant?
Yes, this product is TAA compliant, making it suitable for specific government and institutional requirements.
What accessories are compatible with this Myriad Reveal screen?
You can add various Da-Lite controllers, such as the DL15316 or RF/BLE remote options like the DL16522, to manage the electric screen.
