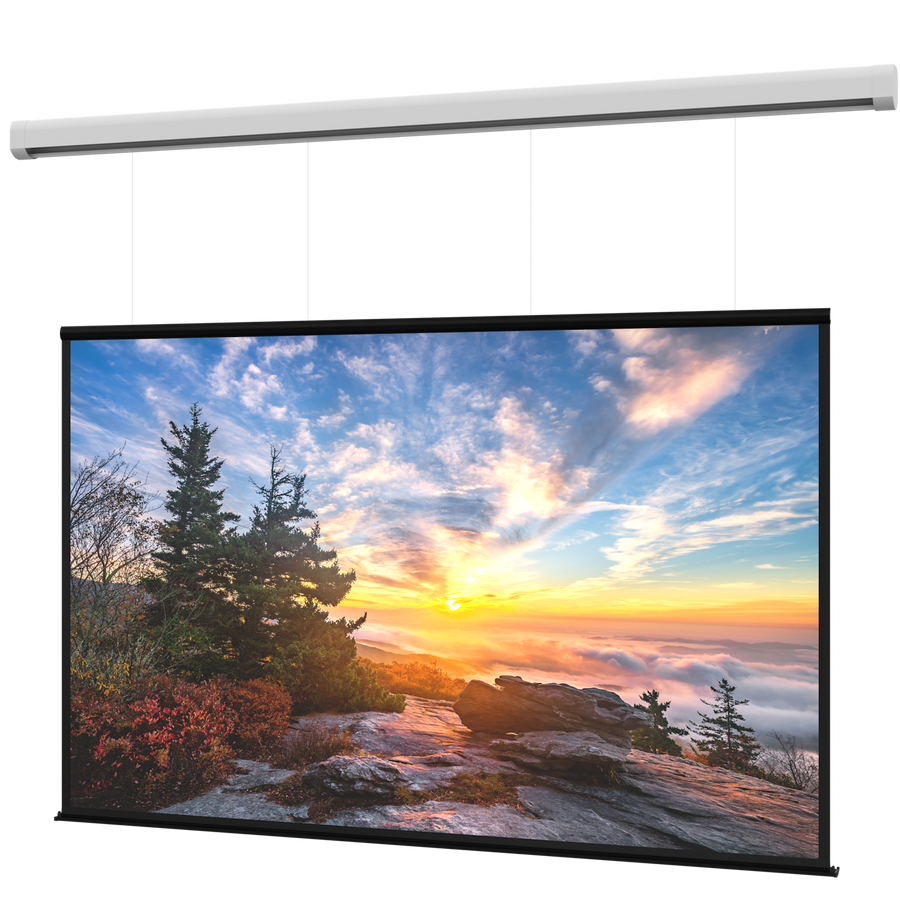

Da-Lite Myriad Reveal, 94.5" x 168" with High Contrast Matte White - DL100204EL
Large venue 16:9 electric screen with SightLine cable drop and High Contrast Matte White surface
The Da-Lite DL100204EL is a large venue electric projection screen designed for professional installations in conference centers, lecture halls, and houses of worship. This 94.5" x 168" (426.7 x 240 cm) model is part of the Myriad Reveal series and features a 16:9 HDTV screen format. It utilizes a SightLine cable drop system, which allows for a fully adjustable cable drop of up to 16’ (5 m) between the ceiling and the top of the screen. This feature enables installers to vary the vertical placement of the screen to preserve architectural interests or accommodate speaker and camera placement. This specific SKU is a non-tensioned model featuring a High Contrast Matte White surface. The system is TAA compliant and includes low voltage control with a 220V (50Hz) motor for export applications. For ceiling or wall mounting, the versatile brackets provide built-in case leveling of ±.5” (12.7 mm) vertically and horizontal centering adjustability of ±6” (152.4 mm).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 193 in (490.2 cm) |
| Screen Height | 94.5 in (240 cm) |
| Screen Width | 168 in (426.7 cm) |
| Shipping Dimensions | 198.65" x 13" x 20.25" (504.6 x 33 x 51.4 cm) |
| Shipping Weight | 475 lbs (215.5 kg) |
| Size | 94.5" x 168" or 193" diagonal |
| Application | CeilingWall |
| Built-In Control | Low Voltage Control |
All other specifications 12
| Drop Type | SightLine Cable Drop |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | High Contrast Matte White (non-tensioned) |
| TAA Compliant | Yes |
| UPC | 840236913213 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Da-Lite Screen Controller - DL15316
DL15316$504.00
Questions about this part
How much vertical space can I leave between the ceiling and the top of the screen?
The SightLine feature provides a fully adjustable cable drop of up to 16’ (5 m) between the ceiling and the top of the screen surface.
Is this model compatible with HDTV aspect ratios?
Yes, this DL100204EL model is specifically configured for a 16:9 HDTV screen format.
Can this screen be installed on a wall or ceiling?
The Myriad Reveal series is designed for both ceiling and wall applications, utilizing adjustable brackets for installation.
Can I add a remote control to this screen?
This unit features built-in low voltage control. For wireless or infrared operation, you can add compatible accessories like the DL16522 RF (BLE) remote or the DL16524 infrared remote.
Does this model meet TAA requirements?
Yes, this specific SKU is TAA compliant, making it suitable for various government and international procurement needs.
