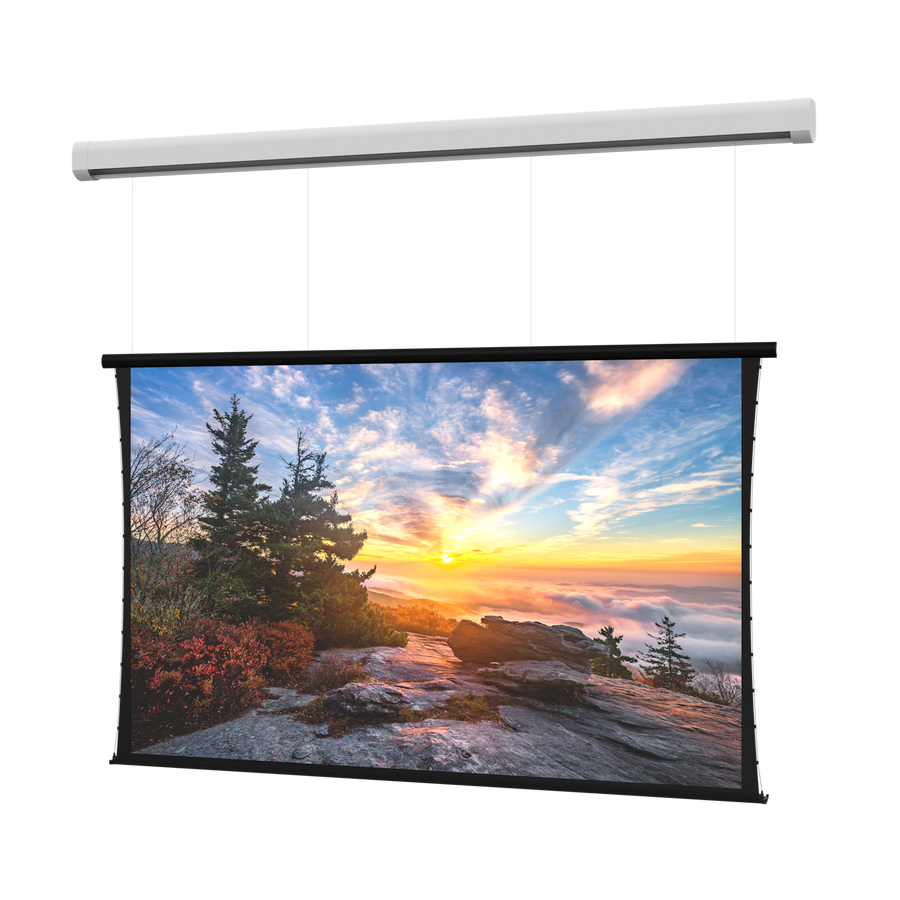

Da-Lite Myriad Reveal, 94.5" x 168" with HD Progressive 1.3 - DL100152EL
Large venue electric projection screen featuring SightLine cable drop and HD Progressive 1.3 surface in a 94.5" x 168" format
The Da-Lite DL100152EL is a large venue electric projection screen measuring 94.5" x 168" (240 cm x 426.7 cm) with a 193" (490.2 cm) diagonal. This model features the HD Progressive 1.3 surface, designed for high-resolution front projection in large environments like lecture halls, hotel ballrooms, and conference centers. It utilizes SightLine technology, a thin cable drop system that eliminates the traditional black drop by elegantly suspending the screen surface. This design allows for a variable vertical placement, accommodating a standard cable drop of up to 16' (5 m) between the ceiling and the top of the screen. The unit is built for both ceiling and wall mounting and includes built-in low voltage control. For international applications, this unit is equipped with a 220V (50Hz) motor. The system is TAA compliant and manufactured in the US.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 193 in (490.2 cm) |
| Screen Height | 94.5 in (240 cm) |
| Screen Width | 168 in (426.7 cm) |
| Shipping Dimensions | 207.68" x 13" x 20.25" (527.5 x 33 x 51.4 cm) |
| Shipping Weight | 498 lbs (225.9 kg) |
| Size | 94.5" x 168" or 193" diagonal |
| Application | CeilingWall |
| Built-In Control | Low Voltage Control |
All other specifications 12
| Drop Type | SightLine Cable Drop |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | High Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | HD Progressive 1.3 |
| TAA Compliant | Yes |
| UPC | 840236912896 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Da-Lite Screen Controller - DL15316
DL15316$504.00
Questions about this part
How does the SightLine cable drop work on the DL100152EL?
The SightLine feature suspends the screen surface using thin cables to eliminate the black drop, allowing for a variable vertical placement up to 16' (5 m) between the ceiling and the screen top.
What mounting options are available for this Myriad Reveal screen?
This model can be installed in either ceiling or wall applications and features built-in case leveling (±.5" (12.7 mm) vertically) and centering (±6" (152.4 mm) horizontally) for ease of installation.
What accessories are required for remote operation of the DL100152EL?
Compatible controllers include the DL16521 (PoE Injector), DL16522 (RF/BLE Remote), or DL16524 (Infrared Remote).
Is this screen suitable for international projects requiring TAA compliance?
Yes, this screen is TAA compliant and is built with a 220V (50Hz) motor specifically for export use.
What is the difference between the standard drop and SightLine models?
While standard non-tensioned models typically have a 2" (5 cm) black drop, SightLine models like this one use a cable drop to provide a more aesthetic, seamless transition.
