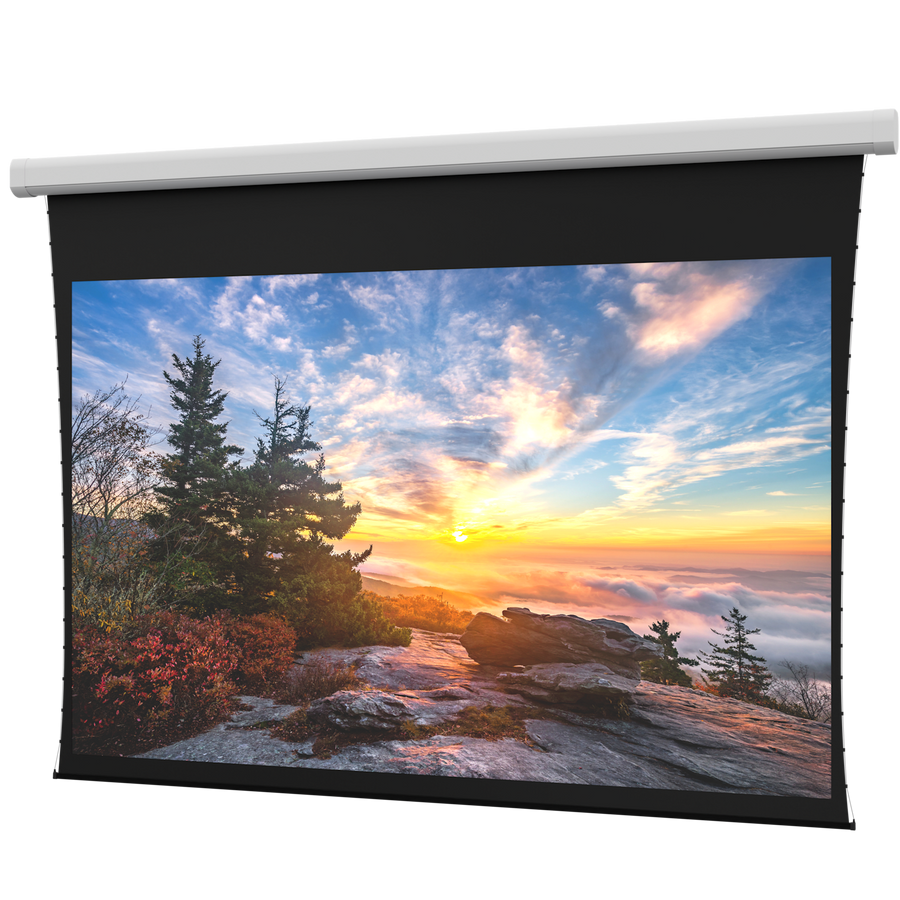

Da-Lite Myriad Reveal, 94.5" x 168" with Da-Tex - DL100107L
94.5" x 168" (193" diagonal) rear projection screen with Da-Tex surface, designed for ceiling or wall mounting in large venues
The Da-Lite Myriad Reveal DL100107L is a large-format electric screen designed for professional rear projection in high-traffic environments like lecture halls, conference centers, and hotel ballrooms. This 193 in (490.2 cm) diagonal screen features a Da-Tex surface and is configured with a standard 120V (60Hz) motor and low voltage control. It utilizes a standard black drop configuration, which provides a clean aesthetic when the screen is fully deployed. This specific model is TAA compliant and manufactured in the US, making it suitable for government and international projects. For installation, the series includes adjustable brackets that allow for ±.5” (12.7 mm) of vertical case leveling and ±6” (152.4 mm) of horizontal centering to ensure a perfectly plumb installation. The screen is intended for 16:9 HDTV formats and is built to accommodate the architectural needs of large meeting spaces.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 193 in (490.2 cm) |
| Screen Height | 94.5 in (240 cm) |
| Screen Width | 168 in (426.7 cm) |
| Shipping Dimensions | 204" x 13" x 20.25" (518.2 x 33 x 51.4 cm) |
| Shipping Weight | 400 lbs (181.4 kg) |
| Size | 94.5" x 168" or 193" diagonal |
| Application | CeilingWall |
| Built-In Control | Low Voltage Control |
All other specifications 12
| Drop Type | Standard Black Drop |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Projection Type | Rear Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Da-Tex |
| TAA Compliant | Yes |
| UPC | 840236911721 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Da-Lite Screen Controller - DL15316
DL15316$504.00
Questions about this part
What is the screen size and aspect ratio for the DL100107L?
This model features a 94.5" x 168" active area, providing a 193 in (490.2 cm) diagonal with a 16:9 HDTV format.
Does this screen support rear projection applications?
Yes, this Myriad Reveal model is specifically configured for rear projection using a Da-Tex screen surface.
How do I control the electric motor on this screen?
The DL100107L includes built-in low voltage control. For additional control, you can add accessories like the DL16522 RF Remote or the DL16524 Infrared Remote.
Can I mount this screen on a ceiling or a wall?
The Myriad Reveal series is designed for versatile installation, supporting both ceiling and wall mounting applications.
What is required for a complete installation of the DL100107L?
This SKU is the screen unit; you may need to purchase separate controllers, such as the DL16521 PoE Injector or the DL16523 RF Remote and PoE Injector, depending on your control system.
