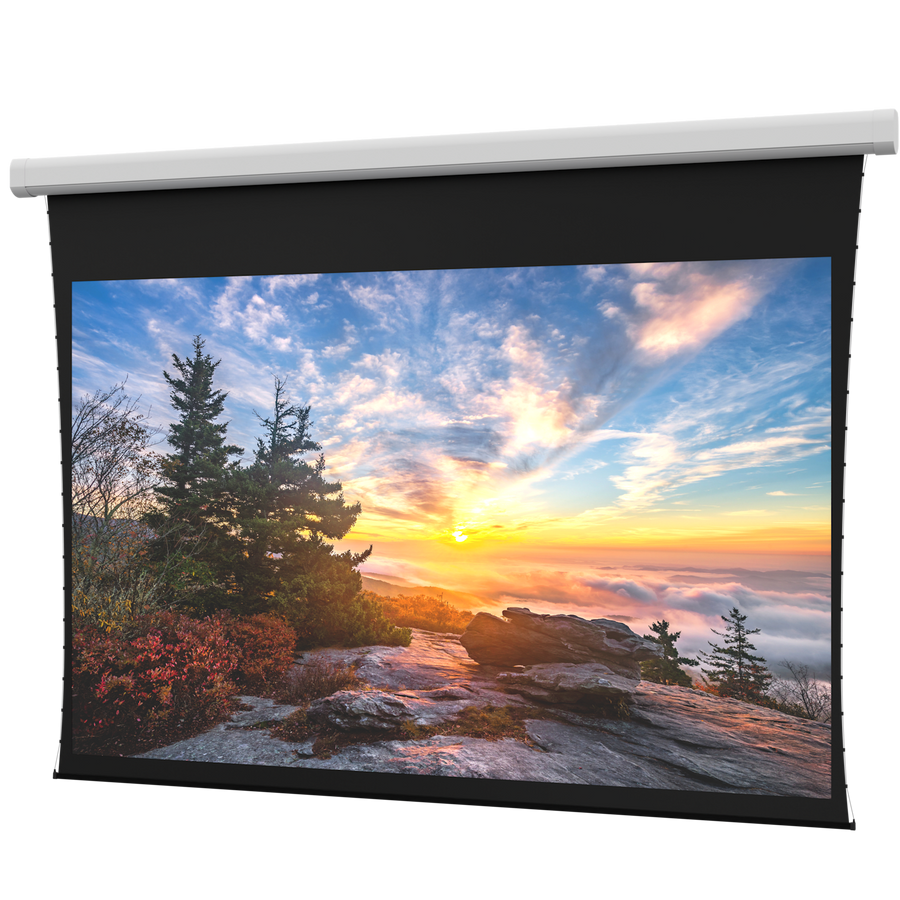

Da-Lite Myriad Reveal, 94.5" x 168" with Da-Mat - DL100106EL
Electric projection screen with Da-Mat surface, 193" diagonal, 94.5" x 168" dimensions, and standard black drop
The Da-Lite DL100106EL is a large venue electric projection screen designed for professional installation in lecture halls, conference centers, and ballrooms. Measuring 94.5" x 168" (240 cm x 426.7 cm) with a 193" (490.2 cm) diagonal, this Myriad Reveal series screen utilizes a Da-Mat surface for standard resolution front projection. This TAA compliant model features a standard black drop configuration and is suitable for both ceiling and wall mounting applications. The installation process is streamlined by built-in case leveling, which allows for ±0.5" (12.7 mm) of vertical adjustment, and centering adjustability of ±6" (152.4 mm) horizontally. This unit is equipped with a 220V (50Hz) motor intended for export use and includes low voltage control. The white powder-coated aluminum finish is standard, though black is available upon request. For complete control, this unit is compatible with various Da-Lite screen controllers, such as the DL16524 infrared remote model or the DL16523 RF (BLE) and PoE injector version.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 193 in (490.2 cm) |
| Screen Height | 94.5 in (240 cm) |
| Screen Width | 168 in (426.7 cm) |
| Shipping Dimensions | 204" x 13" x 20.25" (518.2 x 33 x 51.4 cm) |
| Shipping Weight | 400 lbs (181.4 kg) |
| Size | 94.5" x 168" or 193" diagonal |
| Application | CeilingWall |
| Built-In Control | Low Voltage Control |
All other specifications 12
| Drop Type | Standard Black Drop |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Da-Mat |
| TAA Compliant | Yes |
| UPC | 840236911950 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Da-Lite Screen Controller - DL15316
DL15316$504.00
Questions about this part
Will the Da-Lite DL100106EL fit my 16:9 display setup?
Yes, this 193" diagonal screen is specifically configured in a 16:9 HDTV format with a 94.5" x 168" projection area.
What do I need to buy to control this screen?
You will need a Da-Lite controller, such as the DL16524 for infrared control or the DL16522 for RF (BLE) remote operation.
Can I adjust the screen position after it is mounted?
Yes, the Myriad Reveal series features built-in case leveling that allows for vertical adjustment of ±0.5" (12.7 mm) and horizontal centering of ±6" (152.4 mm).
Is the DL100106EL TAA compliant?
Yes, this model is TAA compliant and is manufactured in the US for global rollouts.
Does this screen have a black drop?
This specific SKU features a Standard Black Drop configuration for the screen's appearance when deployed.
