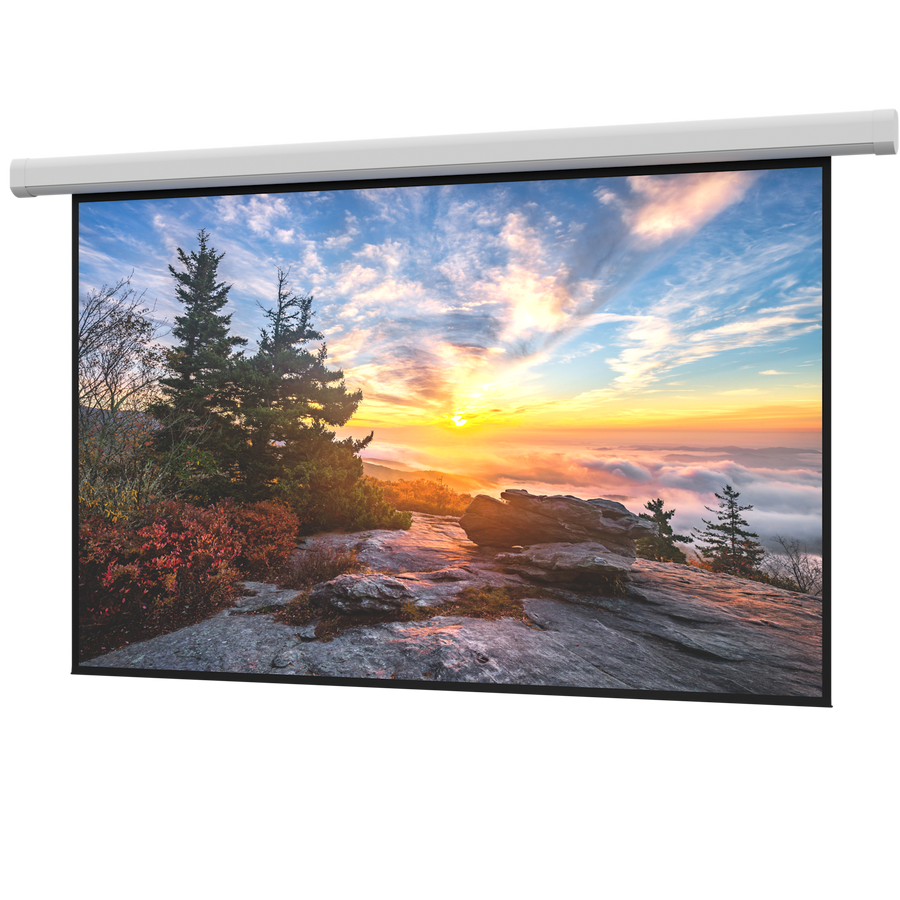

Da-Lite Myriad Reveal, 120" x 192" with Matte White - DL100202L
Large venue electric projection screen, 120" x 192" (226" diagonal), featuring a Matte White surface and standard black drop
The Da-Lite Myriad Reveal DL100202L is a professional-grade electric projection screen designed for large venue applications, including conference centers, lecture halls, and hotel ballrooms. This specific model features a 120" x 192" screen dimensions, providing a 226 in (574 cm) diagonal area for front projection. It is configured with a Matte White non-tensioned surface and a standard black drop, making it a versatile choice for diverse architectural environments. This model is TAA compliant and manufactured in the US. For installation, the series includes versatile brackets that accommodate both ceiling and wall mounting preferences. The system offers built-in case leveling to adjust vertically by ±.5" (12.7 mm) and horizontal centering by up to ±6" (152.4 mm). This electric screen operates on a standard 120V (60Hz) motor and features a 16:10 wide screen format to optimize the viewing area for modern digital content.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 226 in (574 cm) |
| Screen Height | 120 in (304.8 cm) |
| Screen Width | 192 in (487.7 cm) |
| Shipping Dimensions | 219.5" x 13" x 20.25" (557.5 x 33 x 51.4 cm) |
| Shipping Weight | 431 lbs (195.5 kg) |
| Size | 120" x 192" or 226" diagonal |
| Application | CeilingWall |
| Built-In Control | Low Voltage Control |
All other specifications 12
| Drop Type | Standard Black Drop |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Matte White (non-tensioned) |
| TAA Compliant | Yes |
| UPC | 840236913183 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Da-Lite Screen Controller - DL15316
DL15316$504.00
Questions about this part
What are the dimensions and diagonal size of the DL100202L?
This screen has a width of 192 in (487.7 cm), a height of 120 in (304.8 cm), and a 226 in (574 cm) diagonal.
How do I adjust the alignment once the Myriad Reveal is mounted?
The integrated brackets allow for vertical case leveling of ±.5" (12.7 mm) and horizontal centering of up to ±6" (152.4 mm).
Is the DL100202L TAA compliant for government contracts?
Yes, this model is TAA compliant and is manufactured in the US.
What control options are compatible with this screen?
The screen features built-in low voltage control and can be paired with accessories like the DL16521 PoE injector controller or DL16524 infrared remote controller.
What is the difference between this model and SightLine versions?
This DL100202L model features a standard black drop, whereas SightLine models offer a thin cable drop that eliminates the black border above the screen.
