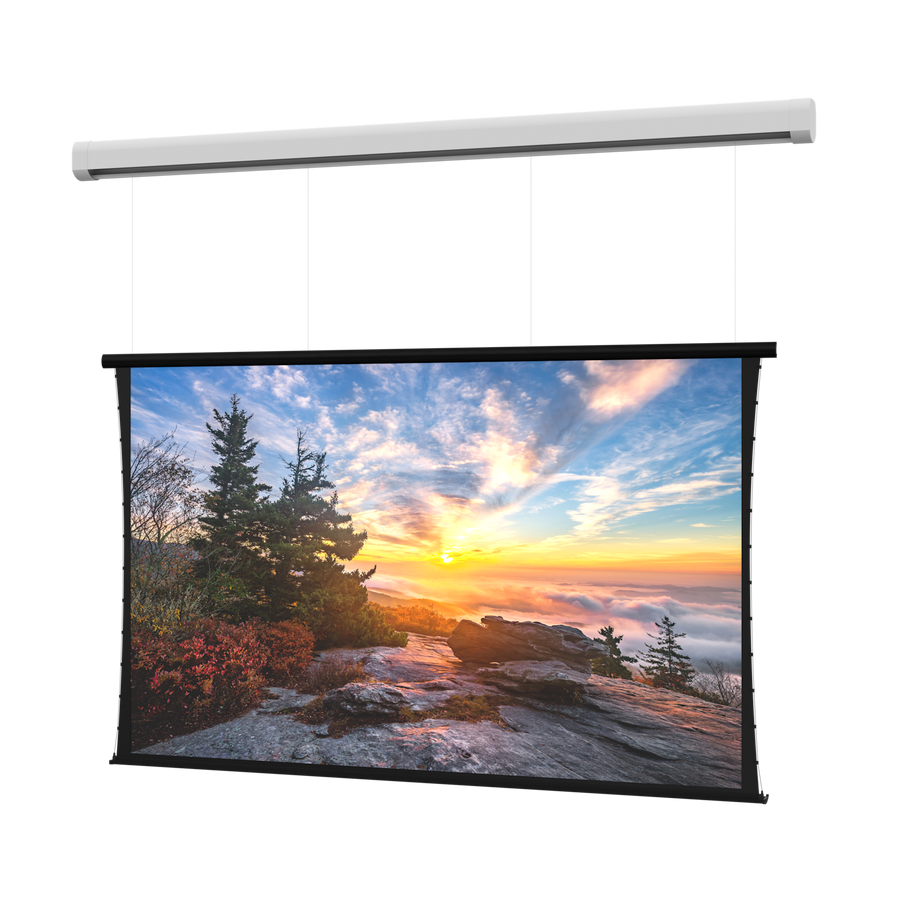

Da-Lite Myriad Reveal, 120" x 192" with HD Progressive 1.1 Contrast - DL100191L
Large venue 120" x 192" electric screen with HD Progressive 1.1 Contrast surface and SightLine cable drop
The Da-Lite DL100191L is a large venue electric projection screen designed for high-impact visuals in professional environments. Featuring a 120" x 192" (304.8 x 487.7 mm) dimension and a 226" (574 cm) diagonal, this screen utilizes a 16:10 wide format. It comes equipped with a SightLine cable drop, which allows for a fully adjustable vertical drop distance of up to 16' (5 m) between the ceiling and the top of the screen. This feature preserves architectural interest and creates usable space for camera or speaker placement. This model features the HD Progressive 1.1 Contrast surface for high-resolution front projection. For installation, the unit includes built-in case leveling providing ±.5" (12.7 mm) of vertical adjustability and ±6" (152.4 mm) of horizontal centering. This TAA compliant, US-made solution is ideal for lecture halls, conference centers, and large meeting spaces. It operates on a standard 120V (60Hz) motor and includes low voltage control for integrated system management.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 226 in (574 cm) |
| Screen Height | 120 in (304.8 cm) |
| Screen Width | 192 in (487.7 cm) |
| Shipping Dimensions | 230.79" x 13" x 20.25" (586.2 x 33 x 51.4 cm) |
| Shipping Weight | 552 lbs (250.4 kg) |
| Size | 120" x 192" or 226" diagonal |
| Application | CeilingWall |
| Built-In Control | Low Voltage Control |
All other specifications 12
| Drop Type | SightLine Cable Drop |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | High Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | HD Progressive 1.1 Contrast |
| TAA Compliant | Yes |
| UPC | 840236913718 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Da-Lite Screen Controller - DL15316
DL15316$504.00
Questions about this part
How much vertical adjustment does the SightLine cable drop provide?
The SightLine cable drop on this model allows for a fully adjustable drop distance of up to 16' (5 m) between the ceiling and the top of the screen surface.
What is required to control the Da-Lite DL100191L?
This screen features built-in low voltage control. For wireless or remote management, compatible accessories include the DL16522 RF (BLE) controller or the DL16524 infrared remote controller.
Can I adjust the screen position during installation?
Yes. The Myriad Reveal features built-in adjustability that allows for ±.5" (12.7 mm) of vertical case leveling and ±6" (152.4 mm) of horizontal centering.
Is the DL100191L suitable for TAA compliance requirements?
Yes, this product is TAA compliant and is a US-made (Federal Ops) product.
What accessories are needed for PoE integration?
For power-over-ethernet connectivity, you can use the DL16521 screen controller with a PoE injector or the DL16523 controller which includes the injector.
