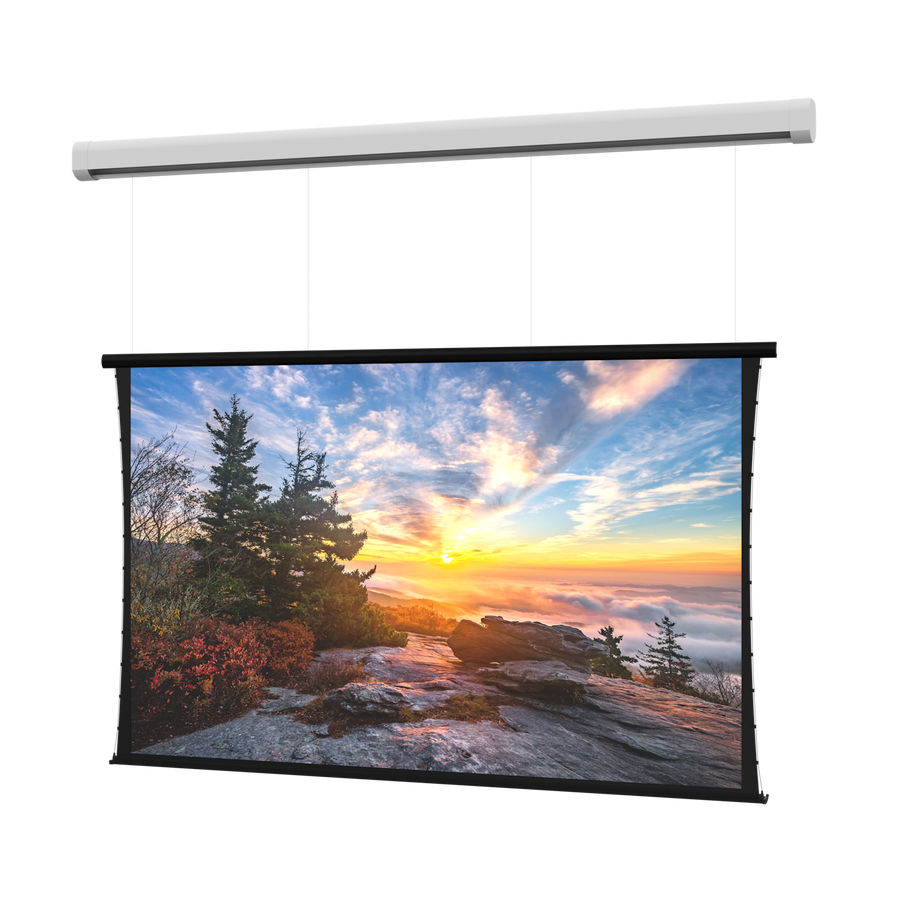

Da-Lite Myriad Reveal, 120" x 192" with HD Progressive 1.1 Contrast - DL100191EL
120" x 192" electric projection screen with SightLine cable drop and HD Progressive 1.1 Contrast surface
The Da-Lite DL100191EL is a Myriad Reveal series electric projection screen designed for large-venue applications such as conference centers, lecture halls, and hotel ballrooms. This 120" x 192" (574 cm x 487.7 cm) screen features a 16:10 Wide screen format and is equipped with an HD Progressive 1.1 Contrast surface. It utilizes a SightLine cable drop system, which allows for a fully adjustable vertical placement of the screen surface. This feature provides a standard 16’ (5 m) cable for cable drop, creating usable space above the viewing area for the installation of speakers or cameras while eliminating the black drop traditionally seen in standard projection setups. This specific SKU is configured for 220V (50Hz) for export and includes built-in low voltage control. The system is TAA compliant and can be installed in either ceiling or wall applications. To ensure precision during setup, the mounting brackets include built-in adjustability, allowing for vertical case leveling of ±.5” (12.7 mm) and horizontal centering of ±6” (152.4 mm).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 226 in (574 cm) |
| Screen Height | 120 in (304.8 cm) |
| Screen Width | 192 in (487.7 cm) |
| Shipping Dimensions | 230.79" x 13" x 20.25" (586.2 x 33 x 51.4 cm) |
| Shipping Weight | 552 lbs (250.4 kg) |
| Size | 120" x 192" or 226" diagonal |
| Application | CeilingWall |
| Built-In Control | Low Voltage Control |
All other specifications 12
| Drop Type | SightLine Cable Drop |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | High Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | HD Progressive 1.1 Contrast |
| TAA Compliant | Yes |
| UPC | 840236913756 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Da-Lite Screen Controller - DL15316
DL15316$504.00
Questions about this part
Will the DL100191EL fit my 16:10 display setup?
Yes, this screen is specifically configured in a 16:10 Wide format with an HD Progressive 1.1 Contrast surface.
What do I need to purchase to control the DL100191EL?
You can add various Da-Lite controllers, such as the DL16521 PoE Injector controller or the DL16522 RF (BLE) Remote controller, to manage the unit.
How much vertical adjustment does the SightLine system provide?
The SightLine cable drop features a 16’ (5 m) cable, allowing for a fully adjustable drop distance between the ceiling and the top of the screen.
Can this screen be used in a TAA compliant project?
Yes, this model is TAA compliant and is manufactured in the US.
What tools are required for installation?
Installers should refer to the Da-Lite Myriad Reveal Instructions PDF for the specific list of tools required for mounting and leveling.
