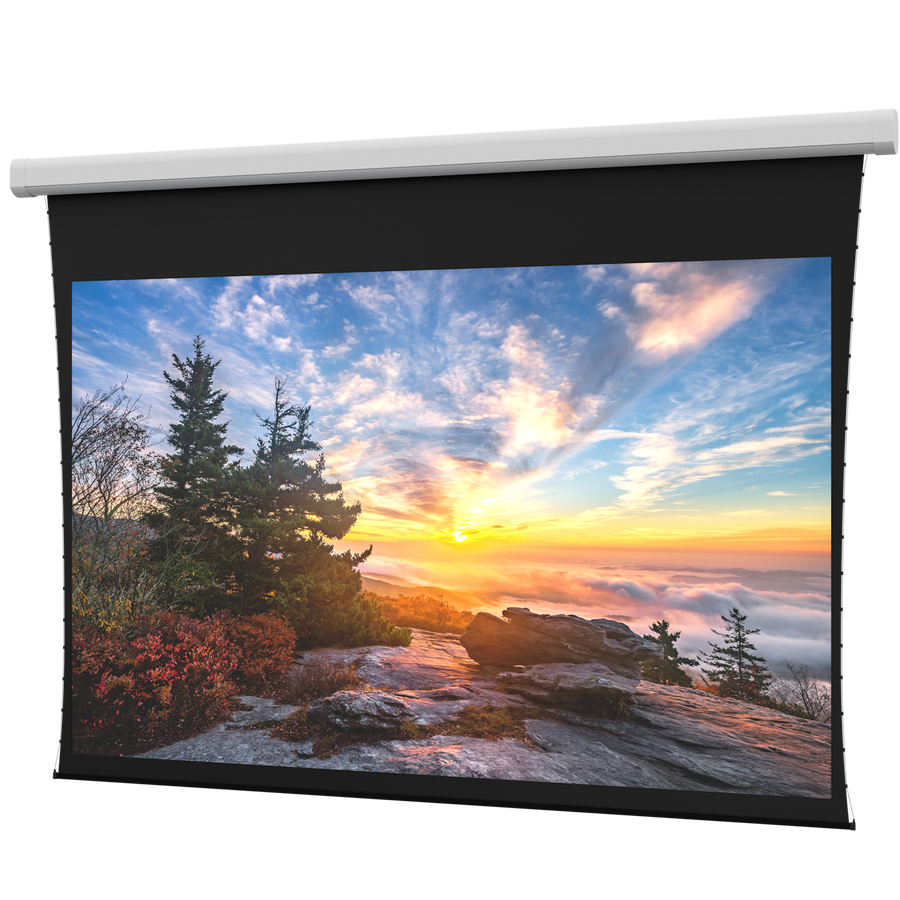

Da-Lite Myriad Reveal, 120" x 192" with Da-Tex - DL100147L
Rear projection electric screen, 120" x 192" (226" diagonal), with Da-Tex surface and standard black drop
The Da-Lite DL100147L is a large-venue electric projection screen designed for professional environments such as lecture halls, conference centers, and hotel ballrooms. Measuring 120" x 192" (304.8 x 487.7 cm) with a 226" (574 cm) diagonal, this screen features a Da-Tex surface optimized for rear projection. The unit is built for flexible installation, offering both wall and ceiling mounting capabilities. This specific SKU features a standard 120V (60Hz) motor and a standard black drop configuration. To simplify the installation process, the Myriad Reveal series includes adjustable brackets that allow for ±0.5" (12.7 mm) of vertical case leveling and ±6" (152.4 mm) of horizontal centering. This ensures precise alignment even when mounting on uneven surfaces. For control, this model includes built-in low voltage control. This TAA-compliant screen is an ideal solution for high-impact visual displays in large meeting spaces or houses of worship.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 226 in (574 cm) |
| Screen Height | 120 in (304.8 cm) |
| Screen Width | 192 in (487.7 cm) |
| Shipping Dimensions | 230.25" x 13" x 20.25" (584.8 x 33 x 51.4 cm) |
| Shipping Weight | 452 lbs (205 kg) |
| Size | 120" x 192" or 226" diagonal |
| Application | CeilingWall |
| Built-In Control | Low Voltage Control |
All other specifications 12
| Drop Type | Standard Black Drop |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Projection Type | Rear Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Da-Tex |
| TAA Compliant | Yes |
| UPC | 840236912360 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Da-Lite Screen Controller - DL15316
DL15316$504.00
Questions about this part
What are the dimensions and size of the DL100147L?
This screen has a width of 192" (487.7 cm), a height of 120" (304.8 cm), and a 226" (574 cm) diagonal.
Can this screen be mounted on a wall or the ceiling?
Yes, the Myriad Reveal is designed for both wall and ceiling applications using versatile, adjustable brackets.
What is required for controlling the screen motor?
The DL100147L features built-in low voltage control and operates on a standard 120V (60Hz) motor.
Which accessories are compatible with this Myriad Reveal model?
You can add various Da-Lite controllers, such as the DL15316 or the DL16522 RF (BLE) Remote controller, to manage operation.
What do I need for the submittal and installation process?
Installers can use the Myriad Reveal Instructions and the Myriad Series CAD Models available in the resources tab for technical planning.
