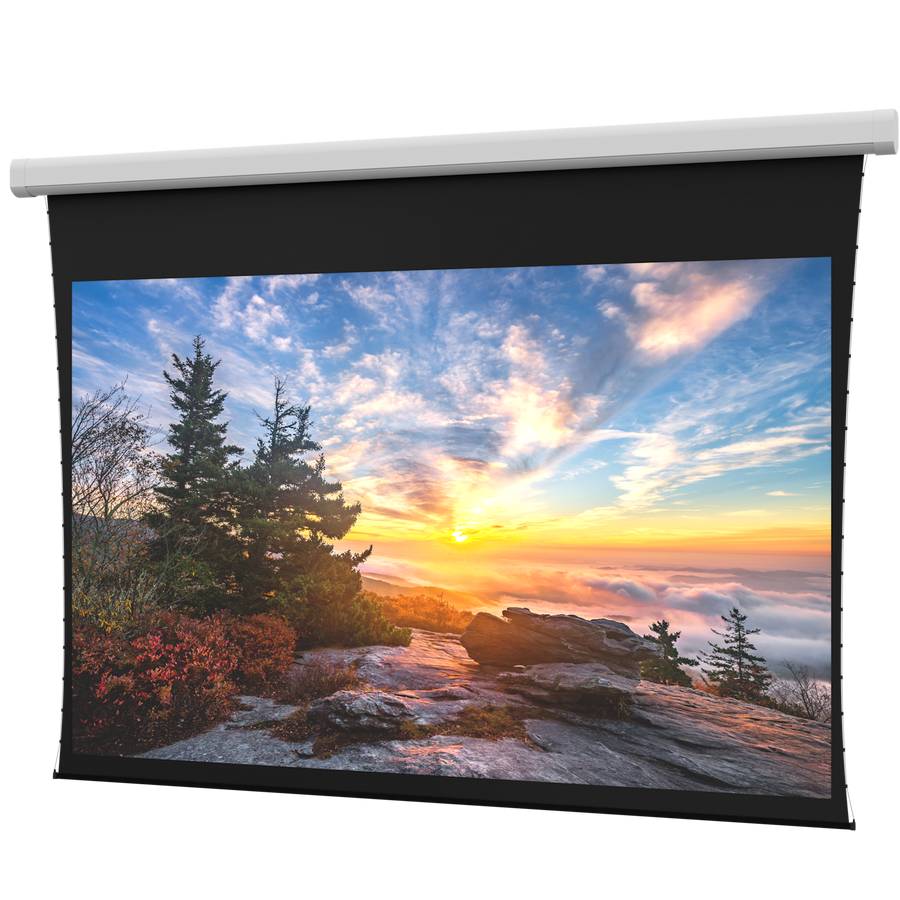

Da-Lite Myriad Reveal, 110" x 176" with HD Progressive 1.3 - DL100136L
Large venue electric projection screen, 110" x 176" size, HD Progressive 1.3 surface, TAA compliant
The Da-Lite Myriad Reveal DL100136L is an electric projection screen designed for large venue applications such as lecture halls, hotel ballrooms, and conference centers. This 110" x 176" (279.4 cm x 447 cm) wide-format screen features a 16:10 aspect ratio and is equipped with the HD Progressive 1.3 high-resolution surface for front projection. This TAA-compliant model is built for both ceiling and wall mounting, offering versatile installation via adjustable brackets that allow for ±.5" (12.7 mm) vertical leveling and ±6" (152.4 mm) horizontal centering. The DL100136L utilizes a standard 120V (60Hz) motor and includes built-in low voltage control for integrated system management. This specific SKU features a standard black drop, ensuring a clean aesthetic when the screen is fully deployed in a large-scale professional environment.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 208 in (528.3 cm) |
| Screen Height | 110 in (279.4 cm) |
| Screen Width | 176 in (447 cm) |
| Shipping Dimensions | 214" x 13" x 20.25" (543.6 x 33 x 51.4 cm) |
| Shipping Weight | 420 lbs (190.5 kg) |
| Size | 110" x 176" or 208" diagonal |
| Application | CeilingWall |
| Built-In Control | Low Voltage Control |
All other specifications 12
| Drop Type | Standard Black Drop |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | High Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | HD Progressive 1.3 |
| TAA Compliant | Yes |
| UPC | 840236912254 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Da-Lite Screen Controller - DL15316
DL15316$504.00
Questions about this part
Will this Da-Lite Myriad Reveal fit my projection setup?
The DL100136L is a 16:10 Wide format screen measuring 110" x 176" (279.4 cm x 447 cm) with a 208 in (528.3 cm) diagonal, specifically designed for front projection.
What mounting options are available for the DL100136L?
This model is designed for both ceiling and wall applications and includes adjustable brackets that allow for ±0.5" vertical leveling and ±6" horizontal centering.
How is the DL100136L controlled?
This screen features built-in low voltage control and a standard 120V (60Hz) motor. Additional controllers, such as the DL16523 with a PoE injector, are available as accessories.
Is this screen TAA compliant for professional projects?
Yes, the DL100136L is TAA compliant and is manufactured in the US.
What is the difference between this and SightLine models?
The DL100136L features a standard black drop, whereas SightLine models offer a cable drop feature that eliminates the black border above the projection surface.
