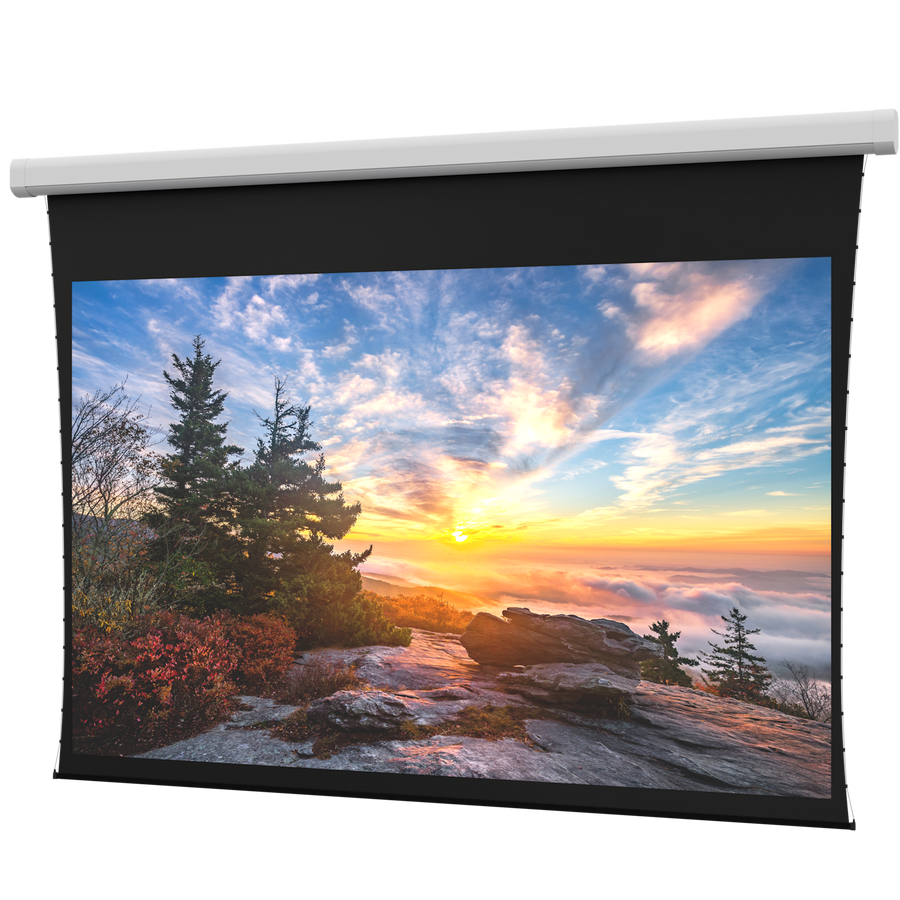

Da-Lite Myriad Reveal, 110" x 176" with HD Progressive 1.1 Contrast - DL100135EL
Electric 110" x 176" Myriad Reveal screen with HD Progressive 1.1 Contrast, 208" diagonal, and 16:10 wide format for large venues
The Da-Lite DL100135EL is a Myriad Reveal series electric projection screen measuring 110" x 176" (279.4 x 447 mm), providing a 208" diagonal viewing area. This large venue solution is configured for front projection on a wide 16:10 screen format and features an HD Progressive 1.1 Contrast surface for high-resolution imagery. Designed for versatility, this model can be mounted on either a ceiling or a wall using adjustable brackets. It includes built-in low voltage control and is equipped with a 220V (50Hz) motor for export. This TAA compliant unit is built for professional environments such as lecture halls, conference centers, houses of worship, and hotel ballrooms. The installation process is simplified through built-in adjustability, allowing for ±0.5" (12.7 mm) of vertical case leveling and ±6" (152.4 mm) of horizontal centering. For global rollouts, this model is manufactured in the US.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 208 in (528.3 cm) |
| Screen Height | 110 in (279.4 cm) |
| Screen Width | 176 in (447 cm) |
| Shipping Dimensions | 214" x 13" x 20.25" (543.6 x 33 x 51.4 cm) |
| Shipping Weight | 420 lbs (190.5 kg) |
| Size | 110" x 176" or 208" diagonal |
| Application | CeilingWall |
| Built-In Control | Low Voltage Control |
All other specifications 12
| Drop Type | Standard Black Drop |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | High Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | HD Progressive 1.1 Contrast |
| TAA Compliant | Yes |
| UPC | 840236912483 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Da-Lite Screen Controller - DL15316
DL15316$504.00
Questions about this part
What is the screen size and aspect ratio of the DL100135EL?
This model features a 110" x 176" screen with a 208" diagonal and utilizes a 16:10 wide aspect ratio.
Can this Myriad Reveal screen be ceiling or wall mounted?
Yes, the Myriad Reveal is designed for both ceiling and wall applications using versatile, adjustable brackets.
What motor voltage is required for the DL100135EL?
This specific SKU is equipped with a 220V (50Hz) motor intended for export use.
What controls are compatible with this electric screen?
The screen includes built-in low voltage control and is compatible with Da-Lite controllers such as the DL16523 or DL16525.
Is the DL100135EL TAA compliant?
Yes, this product is TAA compliant and is manufactured in the US.
