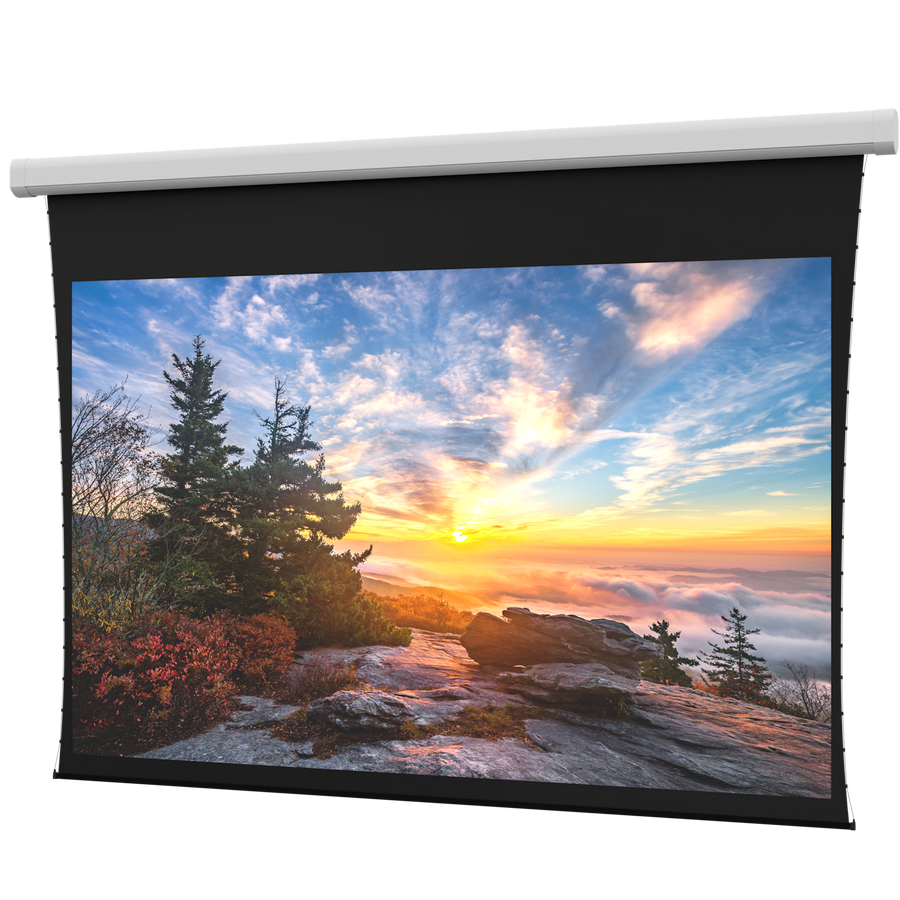

Da-Lite Myriad Reveal, 110" x 176" with HD Progressive 1.0 - DL100134EL
Electric 110" x 176" screen with HD Progressive 1.0 surface, designed for large venue ceiling or wall mounting
The Da-Lite DL100134EL is a large venue electric screen measuring 110" x 176" (208" diagonal). Featuring the HD Progressive 1.0 surface, this screen is engineered for high-resolution front projection in large meeting spaces, lecture halls, and ballrooms. This model utilizes a standard black drop and is built for 220V (50Hz) export applications. It is TAA compliant and offers versatile installation for both ceiling and wall mounting. To simplify the installation process, the mounting brackets include built-in case leveling with ±.5" (12.7 mm) vertical adjustability and horizontal centering of ±6" (152.4 mm). This electric screen provides a professional solution for conference centers and houses of worship requiring a wide (16:10) format display. The Myriad Reveal series provides a global platform with manufacturing available in both the US and EMEA.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 208 in (528.3 cm) |
| Screen Height | 110 in (279.4 cm) |
| Screen Width | 176 in (447 cm) |
| Shipping Dimensions | 214" x 13" x 20.25" (543.6 x 33 x 51.4 cm) |
| Shipping Weight | 420 lbs (190.5 kg) |
| Size | 110" x 176" or 208" diagonal |
| Application | CeilingWall |
| Built-In Control | Low Voltage Control |
All other specifications 12
| Drop Type | Standard Black Drop |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | High Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | HD Progressive 1.0 |
| TAA Compliant | Yes |
| UPC | 840236912476 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Da-Lite Screen Controller - DL15316
DL15316$504.00
Questions about this part
What is the required voltage for the DL100134EL motor?
This specific model is equipped with a 220V (50Hz) motor intended for export use.
Can this screen be mounted on a ceiling or just a wall?
The Myriad Reveal series supports both ceiling and wall mounting applications using adjustable brackets.
Is this screen TAA compliant?
Yes, the DL100134EL is TAA compliant and is manufactured in the US.
What control options are available for this Da-Lite screen?
The screen features built-in low voltage control and is compatible with various Da-Lite controllers, including the DL16521 PoE Injector or the DL16522 RF (BLE) Remote.
Which projection type is this screen intended for?
The DL100134EL is designed specifically for front projection environments.
