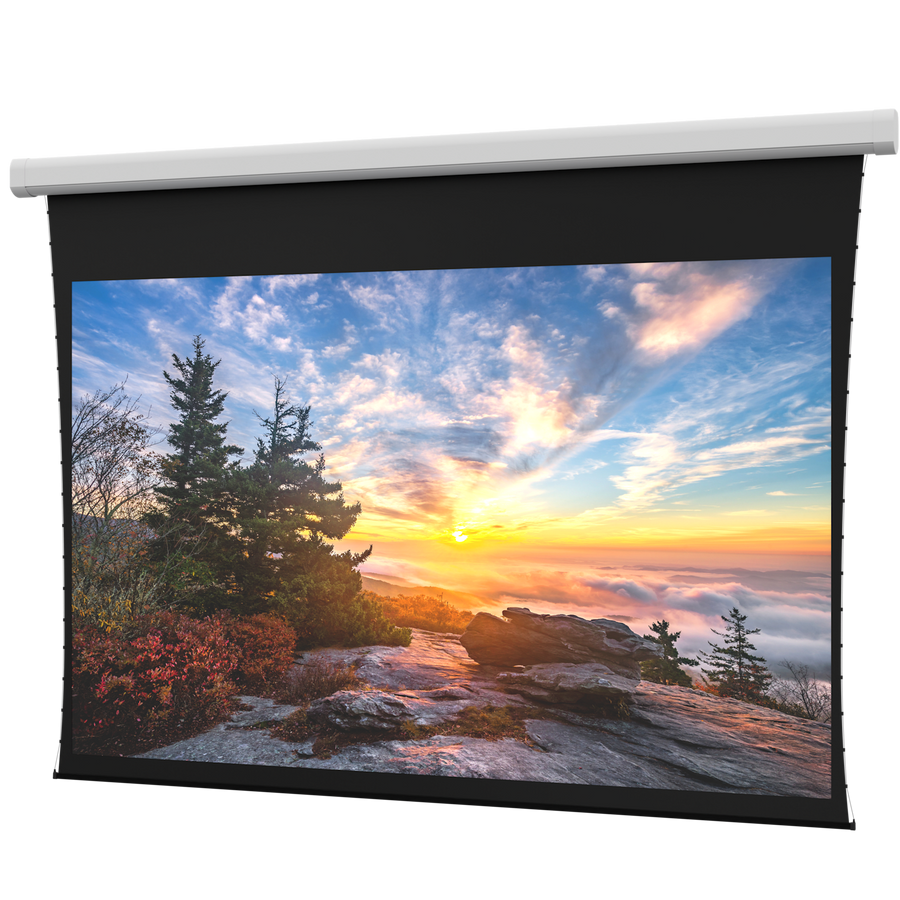

Da-Lite Myriad Reveal, 110" x 176" with Da-Mat - DL100138EL
110" x 176" electric projection screen with Da-Mat surface, 208" diagonal, for ceiling or wall installation
The Da-Lite DL100138EL is a Myriad Reveal series electric projection screen designed for large venue applications, such as lecture halls, conference centers, and ballrooms. This specific configuration features a 110" x 176" (279.4 x 447 mm) area with a 208" (528.3 cm) diagonal and is surfaced with Da-Mat for standard resolution front projection. Built for global deployment, this model is TAA compliant and produced in the US. The screen utilizes a standard black drop configuration and includes built-in low voltage control for integrated operation. For international installations, this unit is equipped with a 220V (50Hz) motor. Mounting is versatile, allowing for either ceiling or wall application using adjustable brackets. Installation is simplified by integrated case leveling, which offers ±.5" (12.7 mm) of vertical adjustment, and centering capabilities of ±6" (152.4 mm) horizontally to ensure precise placement in any architectural setting.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 208 in (528.3 cm) |
| Screen Height | 110 in (279.4 cm) |
| Screen Width | 176 in (447 cm) |
| Shipping Dimensions | 214" x 13" x 20.25" (543.6 x 33 x 51.4 cm) |
| Shipping Weight | 420 lbs (190.5 kg) |
| Size | 110" x 176" or 208" diagonal |
| Application | CeilingWall |
| Built-In Control | Low Voltage Control |
All other specifications 12
| Drop Type | Standard Black Drop |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Da-Mat |
| TAA Compliant | Yes |
| UPC | 840236912513 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Da-Lite Screen Controller - DL15316
DL15316$504.00
Questions about this part
Will this DL100138EL screen fit my ceiling or wall mounting requirement?
Yes, the Myriad Reveal series supports both ceiling and wall mounting via adjustable brackets that allow for ±.5" (12.7 mm) vertical leveling and ±6" (152.4 mm) horizontal centering.
What motor voltage does this specific model use?
This model (DL100138EL) is equipped with a 220V (50Hz) motor designed for export use.
What is the screen format and surface type?
This unit features a 16:10 Wide screen format and is finished with a Da-Mat surface for standard resolution front projection.
What accessories are required for control of the DL100138EL?
Depending on your system, you can add Da-Lite controllers such as the DL16522 (RF BLE), DL16524 (Infrared), or the DL16521 for PoE integration.
Which document should I use for submittals or installation?
The Myriad Reveal Specification Sheet is available for technical data, while the Myriad Reveal Instructions provide guidance for installation.
