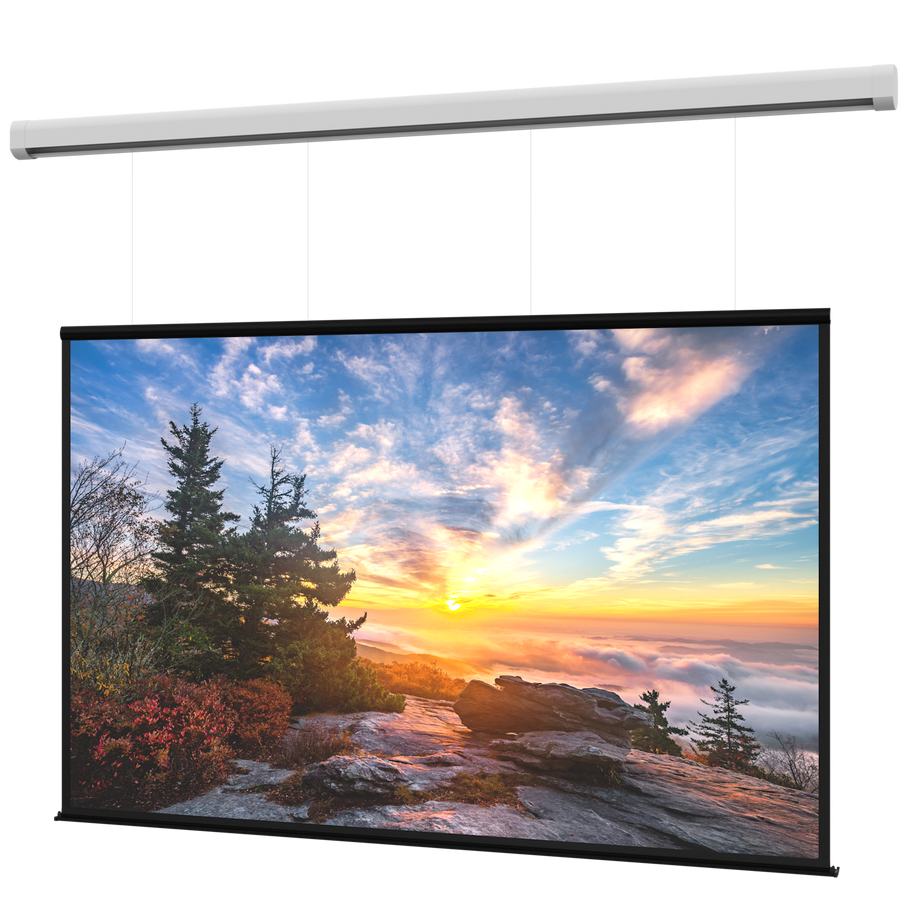

Da-Lite Myriad Reveal, 108" x 192" with Matte White - DL100206L
Electric projection screen with SightLine cable drop, 108" x 192" dimensions, and Matte White non-tensioned surface
The Da-Lite DL100206L is a large venue electric projection screen designed for front projection in high-traffic environments like lecture halls, hotel ballrooms, and conference centers. Measuring 108" x 192" with a 220" diagonal, this Myriad Reveal series screen features a non-tensioned Matte White surface. A key feature of this SKU is the integrated SightLine technology, which utilizes a fully adjustable cable drop of up to 16’ (5 m). This cable drop allows installers to vary the vertical placement between the ceiling and the top of the screen, eliminating the traditional black drop and preserving architectural space for speakers or cameras. This model is TAA compliant and manufactured in the US. The system includes low voltage control and a standard 120V (60Hz) motor. For installation, the brackets allow for ±.5" (12.7 mm) of vertical case leveling and ±6" (152.4 mm) of horizontal centering to ensure a precise fit.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 220 in (558.8 cm) |
| Screen Height | 108 in (274.3 cm) |
| Screen Width | 192 in (487.7 cm) |
| Shipping Dimensions | 222.65" x 13" x 20.25" (565.5 x 33 x 51.4 cm) |
| Shipping Weight | 533 lbs (241.8 kg) |
| Size | 108" x 192" or 220" diagonal |
| Application | CeilingWall |
| Built-In Control | Low Voltage Control |
All other specifications 12
| Drop Type | SightLine Cable Drop |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Matte White (non-tensioned) |
| TAA Compliant | Yes |
| UPC | 840236913268 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Da-Lite Screen Controller - DL15316
DL15316$504.00
Questions about this part
How much vertical adjustment is possible with the SightLine cable drop?
The SightLine technology on this DL100206L model allows for a fully adjustable cable drop of up to 16’ (5 m) between the ceiling and the top of the screen.
What do I need to purchase to control this screen?
This model includes low voltage control. For wireless or remote operation, you can add accessories such as the Da-Lite Screen Controller with RF (BLE) Remote (DL16522) or an Infrared Remote (DL16524).
Can this screen be mounted on a wall or a ceiling?
Yes, the Myriad Reveal series is designed for both ceiling and wall applications, offering versatile mounting options for different architectural needs.
Is this screen TAA compliant?
Yes, the DL100206L is TAA compliant and is manufactured in the US.
Does this screen require a tensioned surface?
This specific SKU features a non-tensioned Matte White surface. For tensioned options or different surface finishes, refer to the Myriad Reveal series configuration options.
