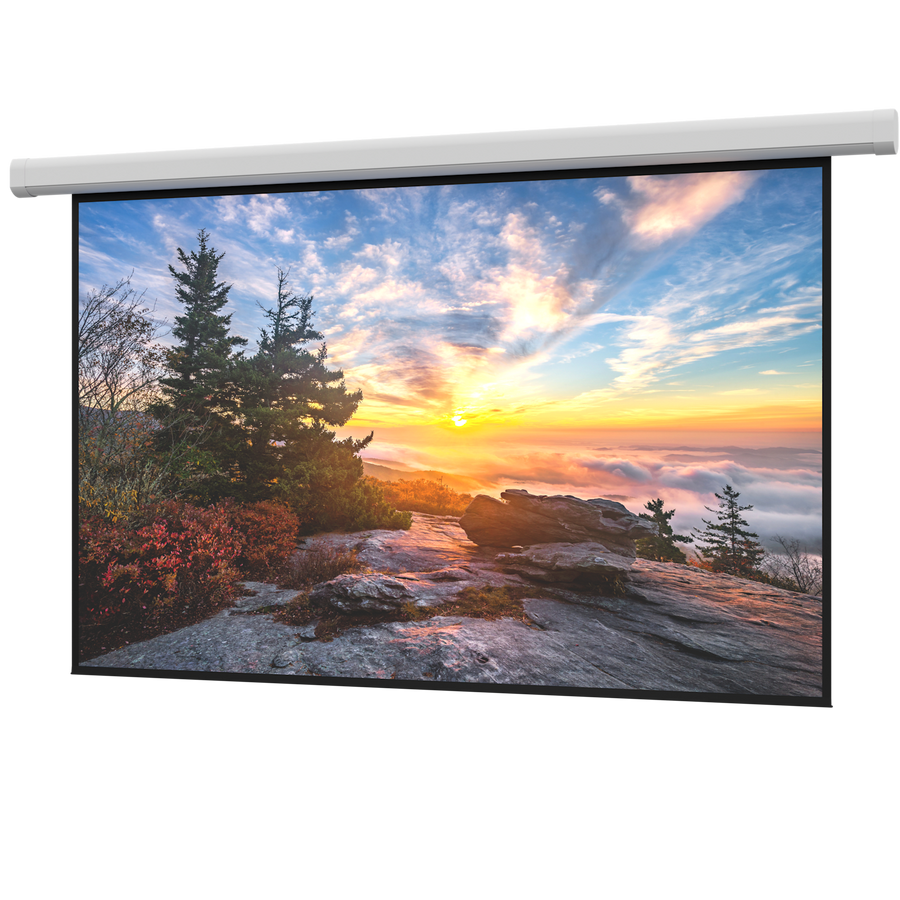

Da-Lite Myriad Reveal, 108" x 192" with Matte White - DL100199EL
Large venue electric screen with Matte White surface, 108" x 192" dimensions, and standard black drop
The DL100199EL is a Da-Lite Myriad Reveal series electric projection screen designed for large-scale applications such as hotel ballrooms, lecture halls, and conference centers. This 220 in (558.8 cm) diagonal screen features a 108 in (274.3 cm) height and 192 in (487.7 cm) width, optimized for 16:9 HDTV formats. It is finished with a Matte White, non-tensioned surface, making it suitable for front projection in high-occupancy environments. This specific SKU includes a standard black drop and is configured for 220V (50Hz) export markets. Installation is simplified by adjustable brackets that allow for ±0.5" (12.7 mm) of vertical case leveling and ±6" (152.4 mm) of horizontal centering. For control, this unit features built-in low voltage control, and an end cap with a convenient push button provides easy access to the internal wiring.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 220 in (558.8 cm) |
| Screen Height | 108 in (274.3 cm) |
| Screen Width | 192 in (487.7 cm) |
| Shipping Dimensions | 219.5" x 13" x 20.25" (557.5 x 33 x 51.4 cm) |
| Shipping Weight | 431 lbs (195.5 kg) |
| Size | 108" x 192" or 220" diagonal |
| Application | CeilingWall |
| Built-In Control | Low Voltage Control |
All other specifications 12
| Drop Type | Standard Black Drop |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Matte White (non-tensioned) |
| TAA Compliant | Yes |
| UPC | 840236913114 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Da-Lite Screen Controller - DL15316
DL15316$504.00
Questions about this part
Will this screen fit my projection setup?
The DL100199EL is designed for front projection in 16:9 HDTV formats and features a non-tensioned Matte White surface.
What is the required mounting for the Myriad Reveal?
This model is designed for ceiling or wall applications and includes adjustable brackets to assist with centering and leveling during installation.
Is the DL100199EL TAA compliant?
Yes, this product is TAA compliant, meeting specific requirements for federal supply procurement.
How do I control the screen motor?
This unit comes with built-in low voltage control; additional controllers like the DL16521 or DL16522 can be used for expanded functionality.
What is the vertical drop for this specific SKU?
As a non-tensioned model, this SKU features a standard 2" (5 cm) black drop.
