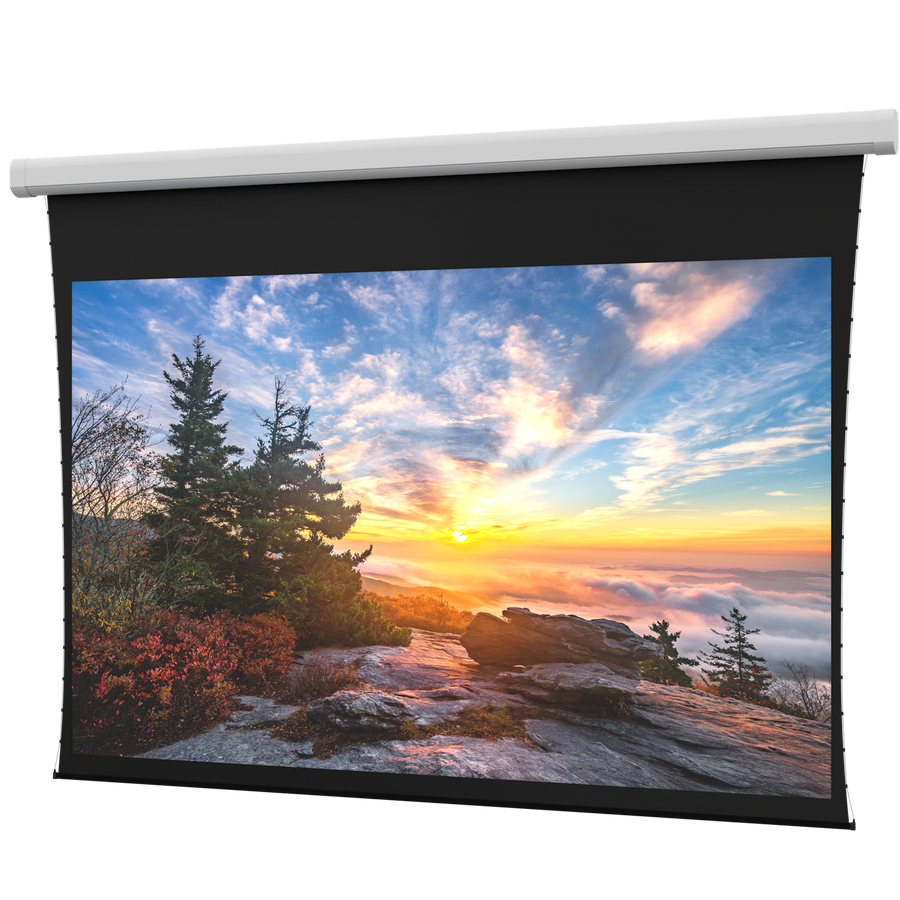

Da-Lite Myriad Reveal, 108" x 192" with HD Progressive 1.3 - DL100120L
Electric front projection screen, 108" x 192" (220" diagonal) with HD Progressive 1.3 surface and standard black drop
The Da-Lite DL100120L is a large-venue electric projection screen designed for front projection in high-impact environments such as lecture halls, conference centers, and hotel ballrooms. This Myriad Reveal series model features a 108" x 192" (274.3 x 487.7 mm) surface area and a 220" diagonal dimension. It is equipped with the HD Progressive 1.3 surface, which is engineered for high-resolution imagery. This specific SKU features a standard black drop and is configured for 120V (60Hz) motor operation with built-in low voltage control. This TAA compliant screen is suitable for both ceiling and wall mounting. Because it is a non-tensioned model, it features a standard 2" (5 cm) black drop. The Myriad Reveal series provides installation flexibility through adjustable brackets that allow for ±6" (152.4 mm) of horizontal centering and ±0.5" (12.7 mm) of vertical case leveling.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 220 in (558.8 cm) |
| Screen Height | 108 in (274.3 cm) |
| Screen Width | 192 in (487.7 cm) |
| Shipping Dimensions | 229.5" x 13" x 20.25" (582.9 x 33 x 51.4 cm) |
| Shipping Weight | 451 lbs (204.6 kg) |
| Size | 108" x 192" or 220" diagonal |
| Application | CeilingWall |
| Built-In Control | Low Voltage Control |
All other specifications 12
| Drop Type | Standard Black Drop |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | High Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | HD Progressive 1.3 |
| TAA Compliant | Yes |
| UPC | 840236911851 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Da-Lite Screen Controller - DL15316
DL15316$504.00
Questions about this part
Will the DL100120L fit my installation space?
This screen measures 108" x 192" with a 220" diagonal. It is a non-tensioned model which provides a standard 2" (5 cm) black drop.
Can I mount this screen on a wall or a ceiling?
Yes, the Myriad Reveal series is designed for both ceiling and wall mounting applications using versatile, adjustable brackets.
What motor and power requirements are needed for the DL100120L?
This unit features a standard 120V (60Hz) motor and includes built-in low voltage control for your control system.
What accessories are needed for remote control operation?
You can add a Da-Lite Screen Controller, such as the DL15316, or RF/IR remote options like the DL16522 or DL16524.
Is this screen TAA compliant for government projects?
Yes, this specific model is TAA compliant and is listed as being manufactured in the US.
